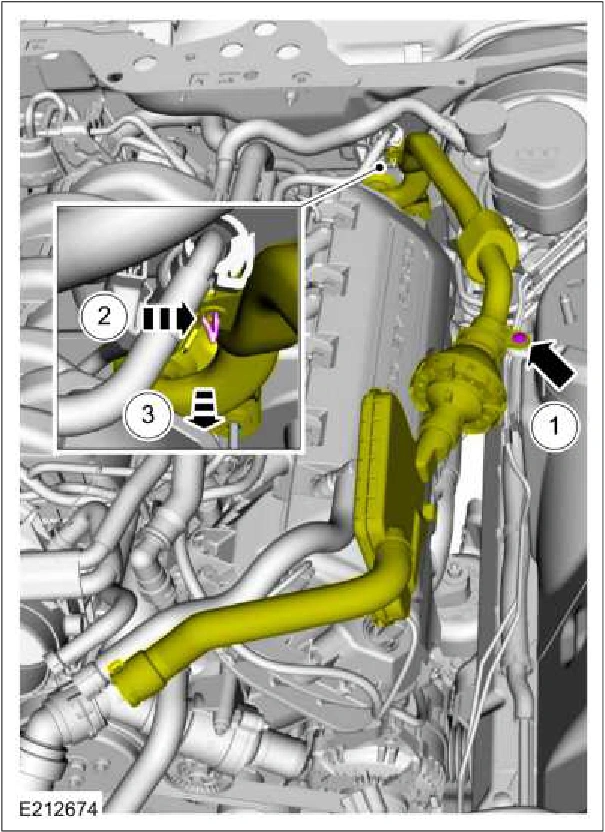

Engine — original illustration 1, reference 388Original colors & callouts · Select to enlarge

Step 20

1. Release the clamp and remove the degas bottle hose.

2. Slide the spring clip until it hits the stop on the hose fitting.

3. Release the clamp and remove the coolant bypass T assembly from the engine.

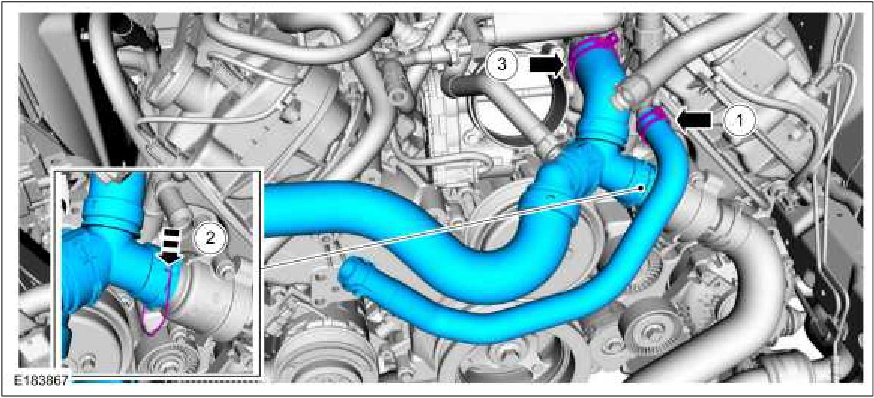

Engine — original illustration 2, reference 388Original colors & callouts · Select to enlarge

21. Disconnect the lower radiator hose from the thermostat housing assembly.
