303-01C Engine - 5.0L

2016 Mustang5.0LReference 385 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine — original illustration 1, reference 385Original colors & callouts · Select to enlarge

12. Remove the nut and the engine ground wire from the cowl.

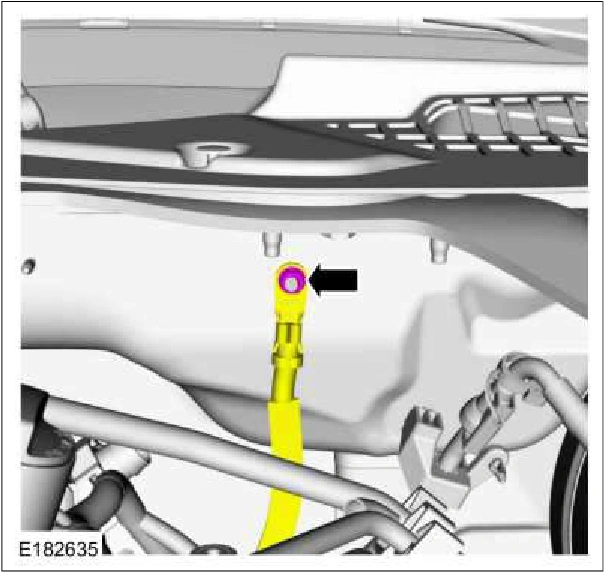

Engine — original illustration 2, reference 385Original colors & callouts · Select to enlarge

13. NOTE: It is not necessary to separate the air cleaner outlet pipe and the air cleaner, the 2 components can be removed as an assembly.

Remove the following items:

1. Refer to: Air Cleaner Outlet Pipe (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT

V8 (308kW/418PS), Removal and Installation).

14. Remove the retainers and the radiator top shield.

Source reference 385
