2016 workshop · Engine

Engine

303-01C Engine - 5.0L

2016 Mustang5.0LReference 384 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine — original illustration 1, reference 384Original colors & callouts · Select to enlarge

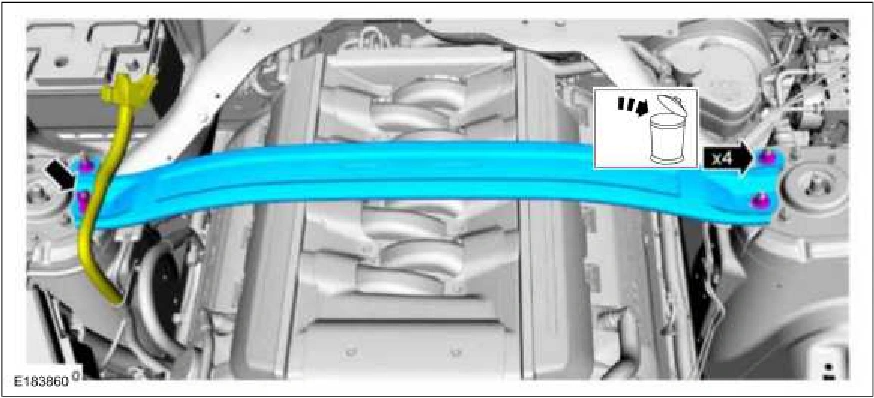

10. If equipped with a strut tower cross brace, detach the wiring harness retainer.

Remove the nuts and the strut tower cross brace.

Engine — original illustration 2, reference 384Original colors & callouts · Select to enlarge

11. NOTE: The engine appearance cover rubber grommets may remain on the cover. If so, remove the grommets from the cover and install them on the intake manifold before installing the cover.

Remove the engine appearance cover.
