18. Disconnect the top PCM electrical connector, the 16 pin electrical connector and detach the wiring harness retainers from the PCM bracket.

Engine — original illustration 2, reference 387Original colors & callouts · Select to enlarge

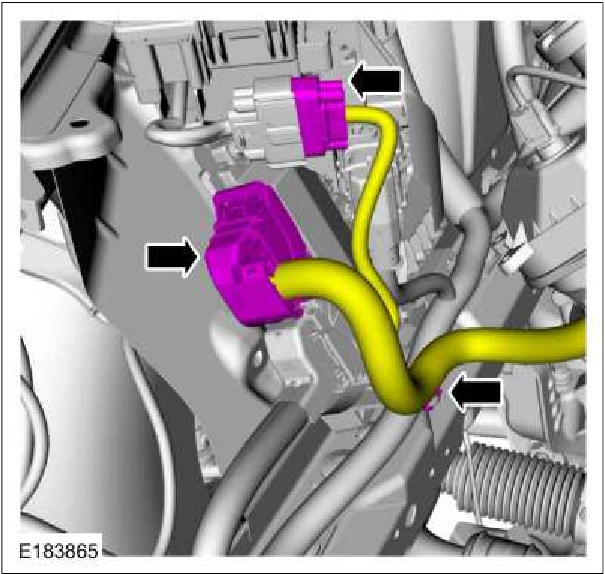

Step 19

1. Remove the pin-type retainer.

2. Depress the retainer.

3. Position the sound enhancement pipe aside.
