25. Position the cover aside.

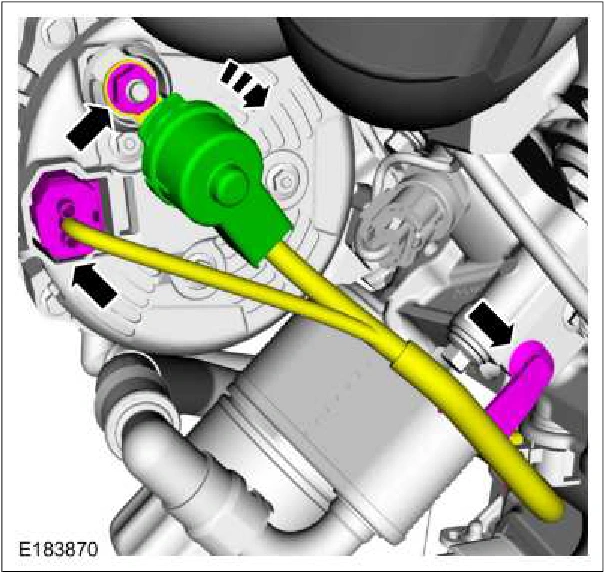

Remove the nut and disconnect the B+ cable. Disconnect the wiring harness electrical connector. Detach the harness retainer.

Engine — original illustration 2, reference 390Original colors & callouts · Select to enlarge

26. Remove the following items:

1. Refer to: Catalytic Converter RH (309-00C Exhaust System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. Refer to: Starter Motor (303-06C Starting System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

27. NOTE: Automatic transmission shown, manual transmission similar.

Disconnect the LH catalyst monitor sensor electrical connector and detach the harness retainers.

Source reference 390
