15. Remove the following items:

1. Refer to: Degas Bottle (303-03C Engine Cooling - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. Refer to: Cooling Fan Motor and Shroud (303-03C Engine Cooling - 5.0L 32V Ti-VCT/5.0L Ti-VCT

V8 (308kW/418PS), Removal and Installation).

3. Refer to: Air Conditioning (A/C) Compressor Belt (303-05C Accessory Drive - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

4. Refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation).

5. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

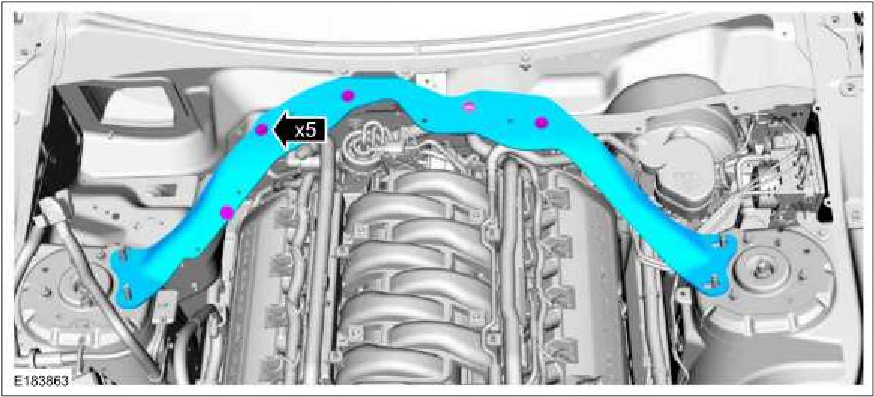

16. Remove the fasteners and the cowl extension.

Engine — original illustration 2, reference 386Original colors & callouts · Select to enlarge

17. Remove the fasteners and the battery heat shield.
