Engine — 2016 workshop reference 383

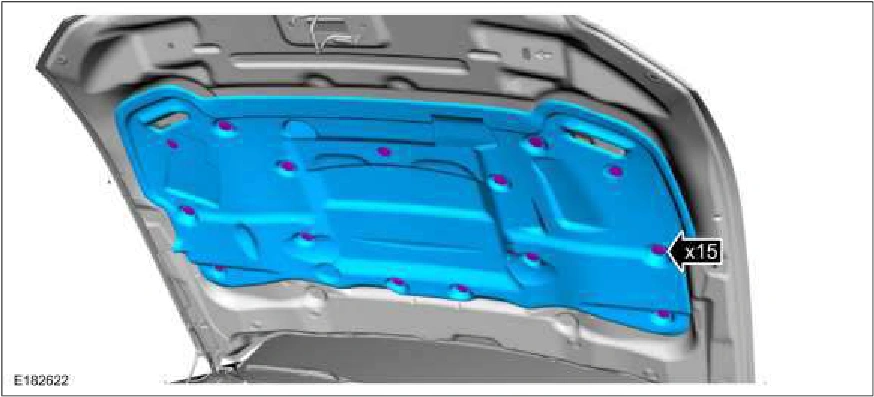

Engine — original illustration 1, reference 383Original colors & callouts · Select to enlarge

Step 8

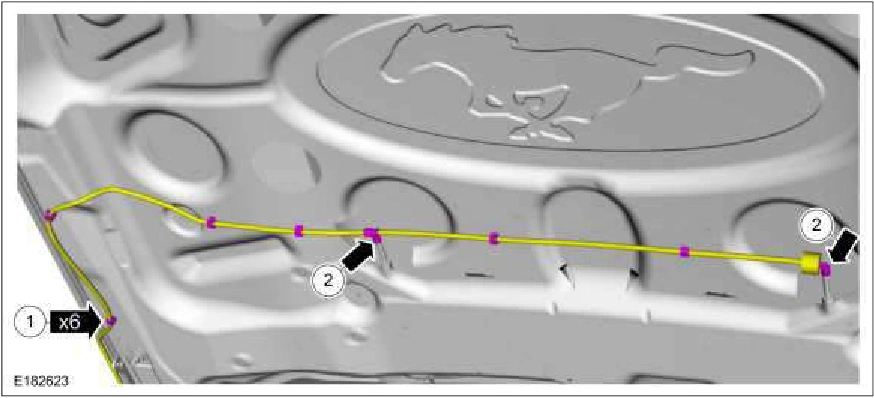

1. Detach the windshield washer hose retainers.

2. Disconnect the windshield washer hose C-Lock Couplers.

Engine — original illustration 2, reference 383Original colors & callouts · Select to enlarge

9. NOTE: Index-mark the hood hinge location to aid in hood installation.

Remove the nuts and the hood.

Source reference 383
