Engine — 2016 workshop reference 397

Engine — original illustration 1, reference 397Original colors & callouts · Select to enlarge

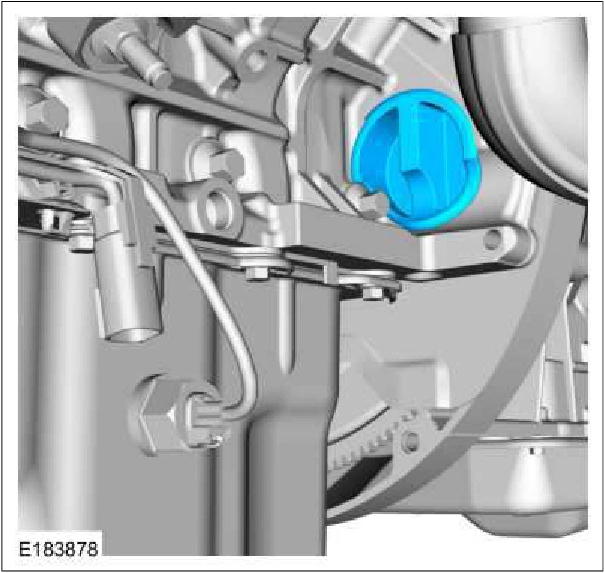

40. Remove the rubber access plug.

Engine — original illustration 2, reference 397Original colors & callouts · Select to enlarge

41. NOTE: Only rotate the crankshaft in a clockwise direction.

Remove and discard the torque converter nuts. Use the General Equipment: Magnetic Socket
