Engine — 2016 workshop reference 402

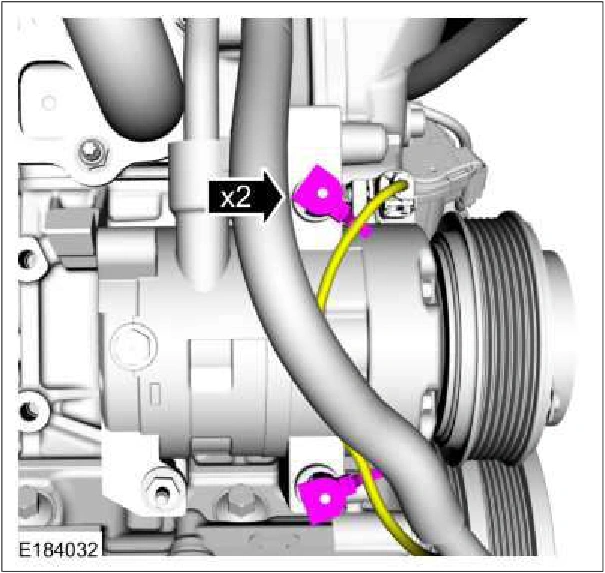

Engine — original illustration 1, reference 402Original colors & callouts · Select to enlarge

50. Remove the stud bolts and position the A/C compressor aside.

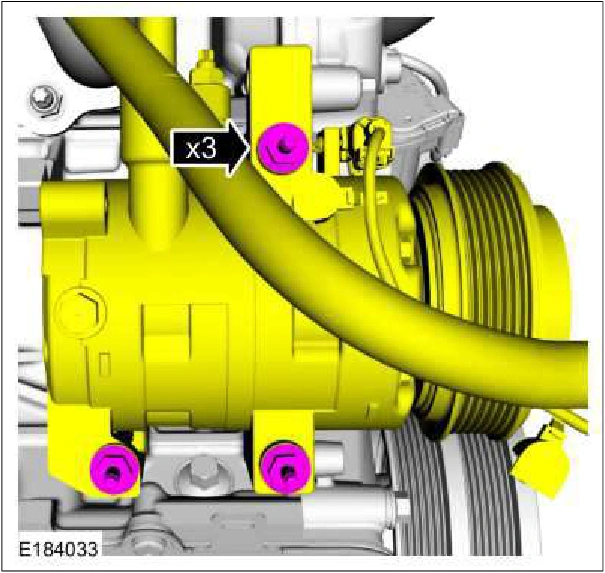

Engine — original illustration 2, reference 402Original colors & callouts · Select to enlarge

51. Remove the bolts, the stud bolt and the LH engine mount bracket.
