Engine — 2016 workshop reference 404

Engine — original illustration 1, reference 404Original colors & callouts · Select to enlarge

54. Remove RH transmission-to-engine bolts.

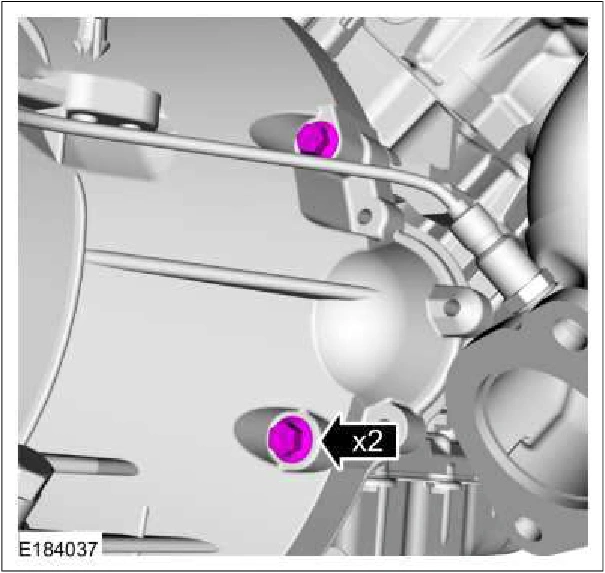

Engine — original illustration 2, reference 404Original colors & callouts · Select to enlarge

55. Remove LH transmission-to-engine bolts.
