Engine — 2016 workshop reference 416

Engine — original illustration 1, reference 416Original colors & callouts · Select to enlarge

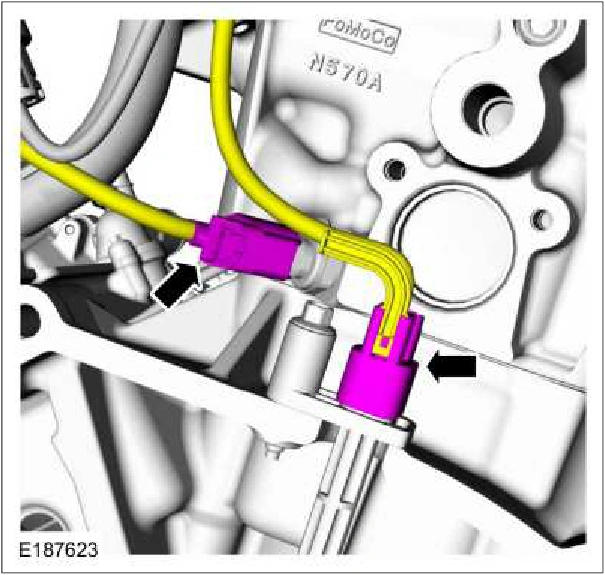

14. Disconnect the CHT sensor and the CKP sensor electrical connectors.

Engine — original illustration 2, reference 416Original colors & callouts · Select to enlarge

15. Remove the RH spark plug cover.
