Step 20

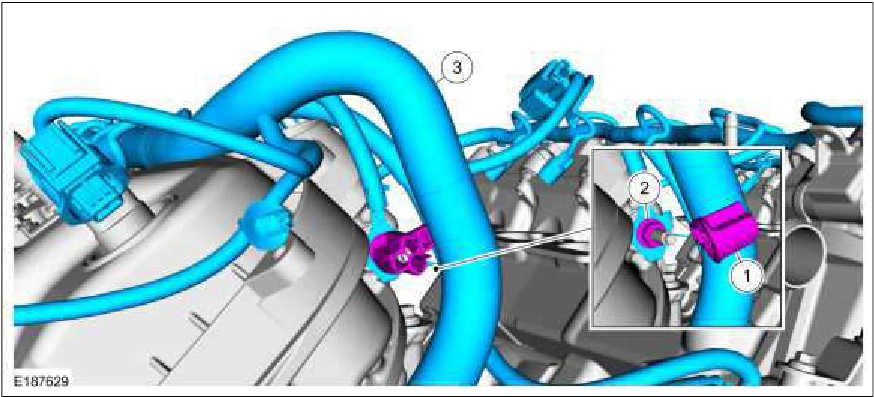

1. Detach the wiring harness retainer from the engine front cover stud bolt.

2. Remove the nut and the ground wire.

3. Remove the wiring harness from the engine.

Engine — original illustration 2, reference 419Original colors & callouts · Select to enlarge

21. NOTE: When removing the ignition coils, a slight twisting motion will break the seal and ease removal.

Remove the bolts and the ignition coils.
