2016 workshop · Engine

Engine

303-01C Engine - 5.0L

2016 Mustang5.0LReference 424 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine — original illustration 1, reference 424Original colors & callouts · Select to enlarge

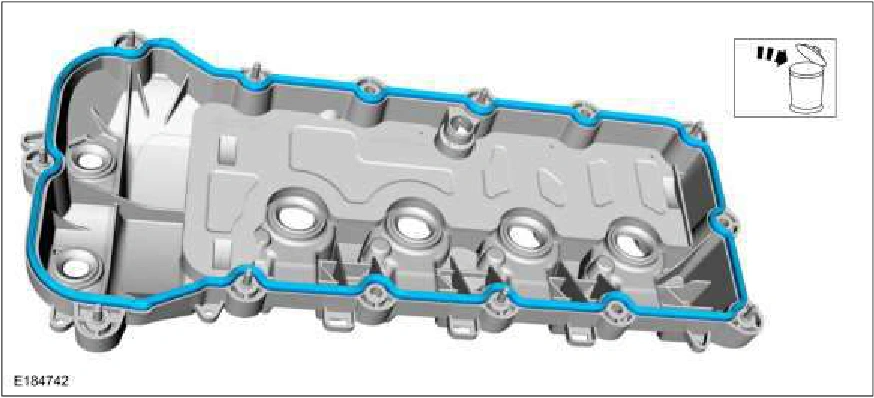

30. NOTE: Clean the valve cover gasket groove with soap and water or a suitable solvent.

Remove and discard the gasket.

Engine — original illustration 2, reference 424Original colors & callouts · Select to enlarge

31. Inspect the VCT variable force solenoid seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle. , 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.

Source reference 424
