Front Control/Display Interface Module (FCDIM)

415-00A Information and Entertainment System - General Information - 2016 Mustang Vehicles With: AM/FM/CD/SYNC

Procedure revision date:

Removal and Installation

09/8/2014

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the FCDIM following the on-screen instructions.

2. Remove the FCIM.

3. Remove the bolts and the FCDIM. Disconnect the electrical connector. Torque : 22 lb.in (2.5 Nm)

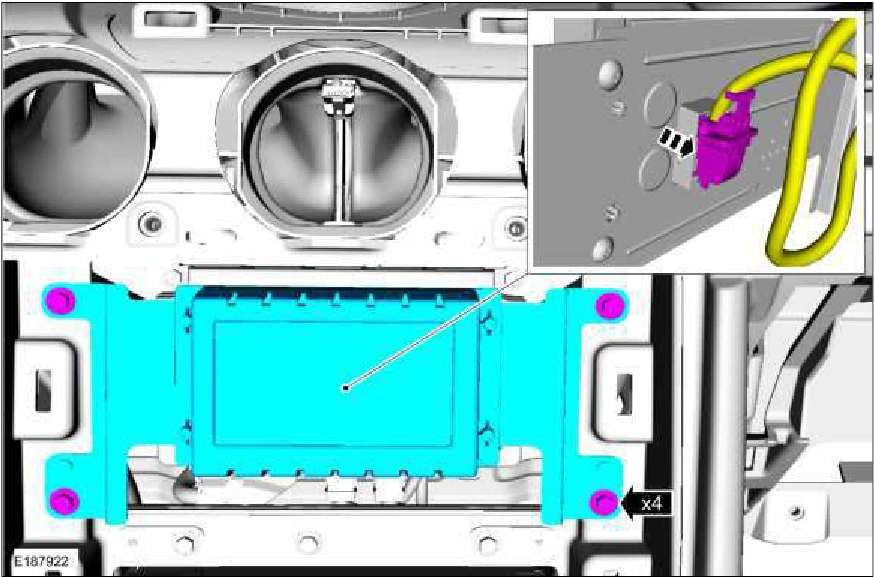

415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 1, reference 4271Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. NOTE: This step is only necessary if replacing the component.

Using a diagnostic scan tool, complete the PMI process for the FCDIM following the on-screen instructions.

Source reference 4271
