415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 1, reference 4273Original colors & callouts · Select to enlarge

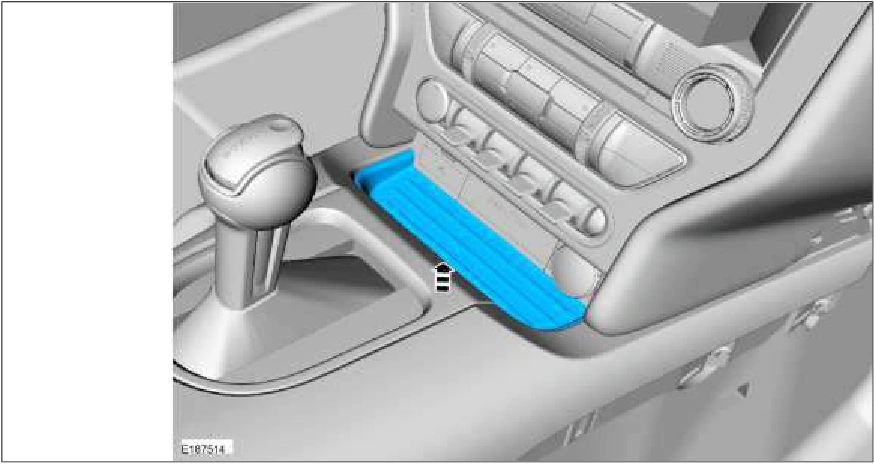

4. Remove the stowage area mat.
415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 2, reference 4273Original colors & callouts · Select to enlarge

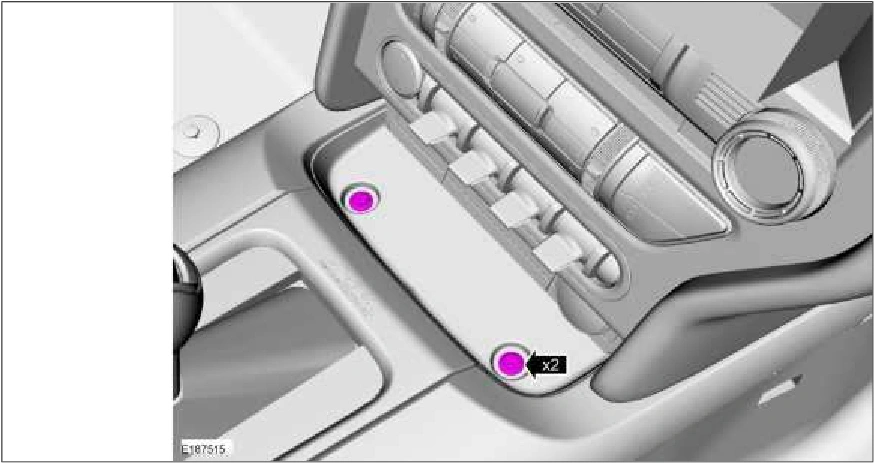

5. Remove the floor console upper bolts.
415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 3, reference 4273Original colors & callouts · Select to enlarge
