Rear Quarter Panel Speaker

415-00A Information and Entertainment System - General Information - 2016 Mustang Vehicles With: AM/FM/CD/SYNC

Procedure revision date:

Removal and Installation

07/29/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the convertible loadspace trim panel. Refer to: Loadspace Trim Panel - Convertible (501-05 Interior Trim and Ornamentation, Removal and Installation).

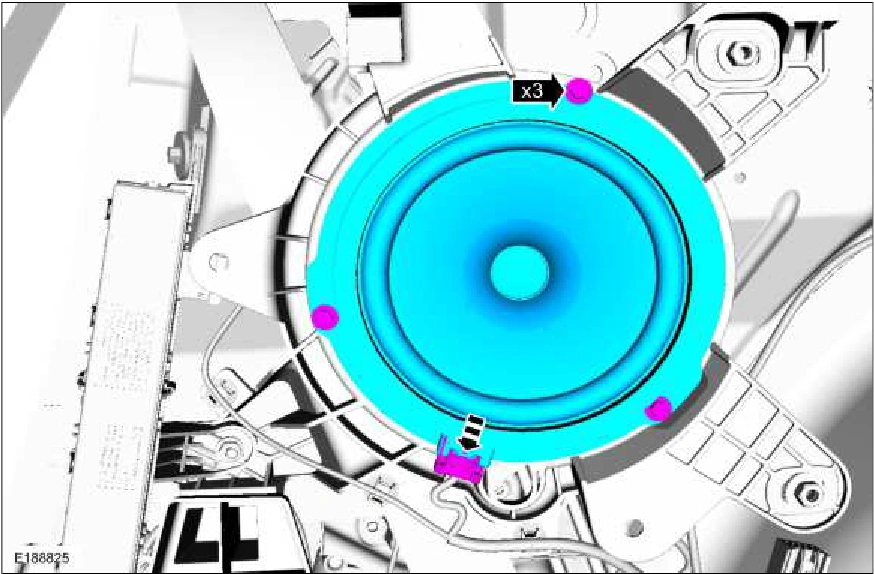

2. Remove the bolts and the rear quarter panel speaker. Disconnect the electrical connector. Torque : 22 lb.in (2.5 Nm)

415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 1, reference 4289Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 4289
