SYNC Module [APIM]

415-00A Information and Entertainment System - General Information - 2016 Mustang Vehicles With: AM/FM/CD/SYNC

Procedure revision date:

Removal and Installation

09/8/2014

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the FCDIM. Refer to: Front Control/Display Interface Module (FCDIM) (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

2. Remove the bolts and APIM. Disconnect the electrical connectors. Torque : 13 lb.in (1.5 Nm)

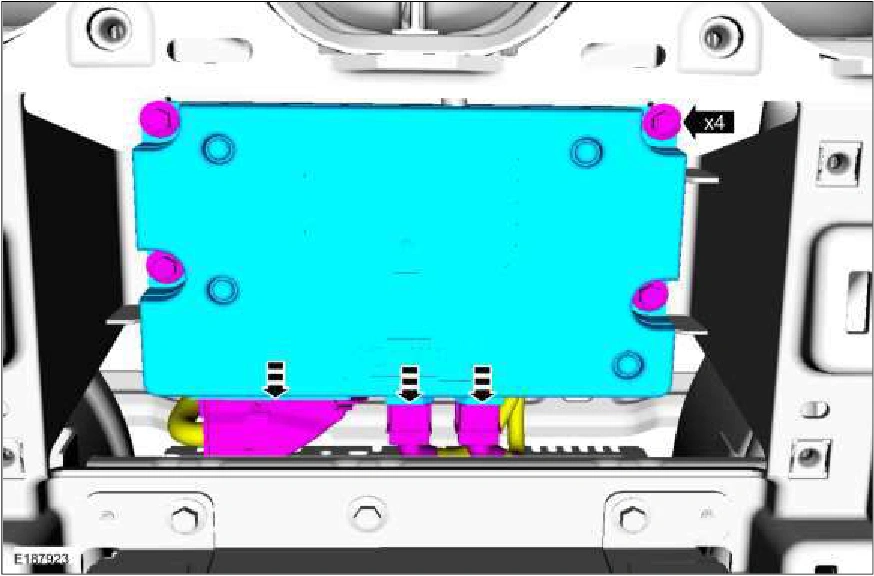

415-00A General Information -Vehicles With AM-FM-CD-SYNC — original illustration 1, reference 4290Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. If a new APIM is being installed, program the APIM to the correct software level. Refer to: SYNC Module [APIM] Programming (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, General Procedures).

Source reference 4290
