Satellite Radio Antenna

415-00B Information and Entertainment System - General Information - 2016 Mustang Vehicles With: Touchscreen Display

Procedure revision date:

Removal and Installation

05/12/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

Coupe

1. Lower the headliner. Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).

Step 2

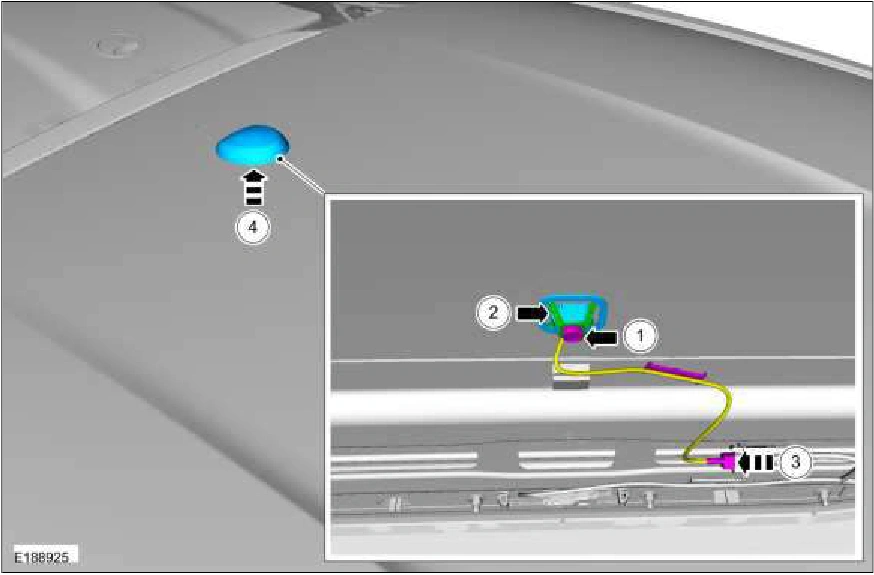

1. Remove the satellite radio antenna retaining bolt. Torque : 62 lb.in (7 Nm)

2. Remove the satellite radio antenna retainer.

3. Disconnect the electrical connector.

4. Remove the satellite radio antenna.

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4587Original colors & callouts · Select to enlarge

Convertible

3. Remove the luggage compartment lid interior trim panel.

1. Remove the latch cover.

2. Remove the push pins.

Source reference 4587
