Satellite Radio Antenna Cable
Removal
NOTE: The original equipment Satellite radio cable(s) are part of the wiring harness and cannot be removed. This procedure refers to replacement of the cable(s) only by overlaying the cable(s).
NOTE: The Satellite radio cable(s) inline connection is located under the floor console.
Coupe: Front Cable
1. Remove the floor console. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
2. Remove the ACM. Refer to: Audio Front Control Module (ACM) (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation).

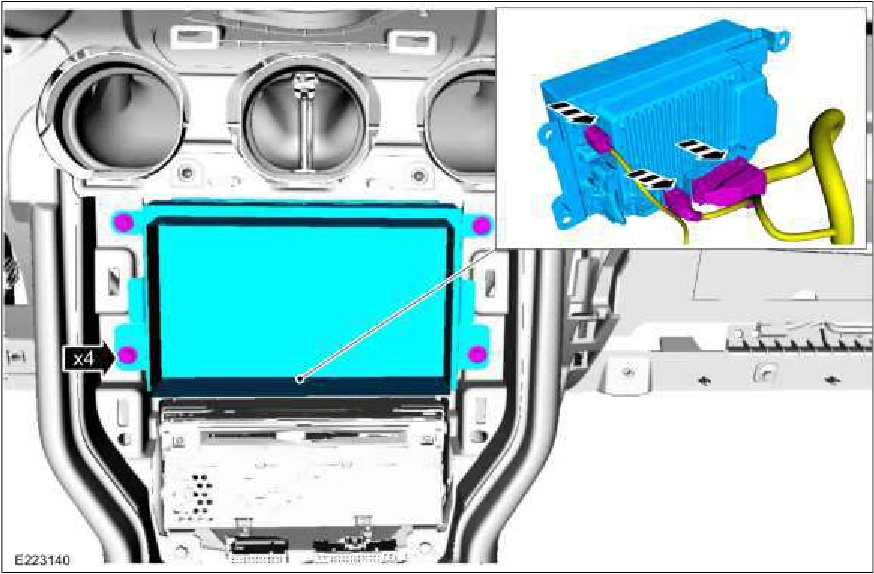

3. Remove the bolts and the FDIM. Disconnect the electrical connectors. Torque : 22 lb.in (2.5 Nm)
Coupe: Rear Cable
4. Remove the floor console. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
5. Lower the headliner. Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).
Convertible
