Installation

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4588Original colors & callouts · Select to enlarge

Step 4

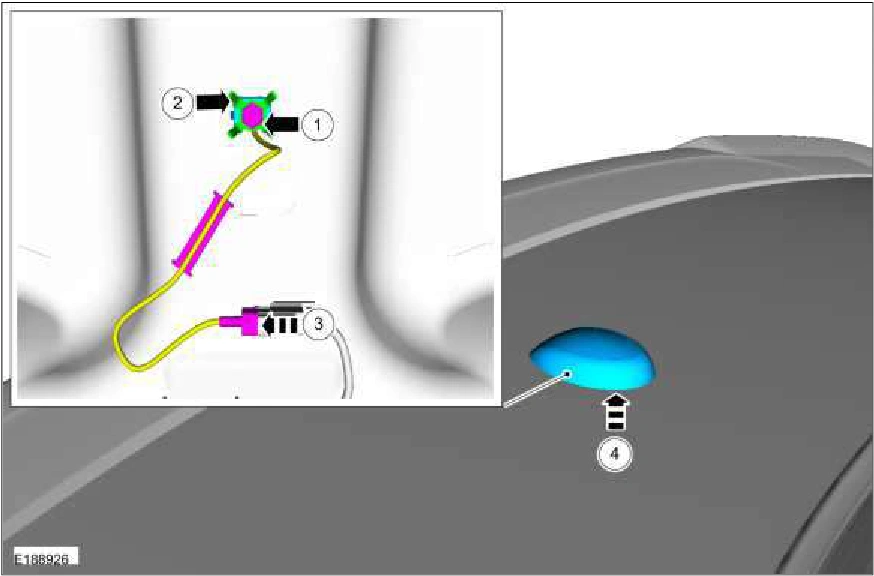

1. Remove the satellite radio antenna retaining bolt. Torque : 62 lb.in (7 Nm)

2. Remove the satellite radio antenna retainer.

3. Disconnect the electrical connector.

4. Remove the satellite radio antenna.

415-00B General Information -Vehicles With Touchscreen Display — original illustration 2, reference 4588Original colors & callouts · Select to enlarge

1. NOTE: If installing a new satellite radio antenna it is not necessary to remove the bolt from the satellite radio antenna base.

1. Install harness through the opening.

2. Install base until seated.

Source reference 4588
