6. Remove the floor console. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
7. Remove the ACM. Refer to: Audio Front Control Module (ACM) (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation).

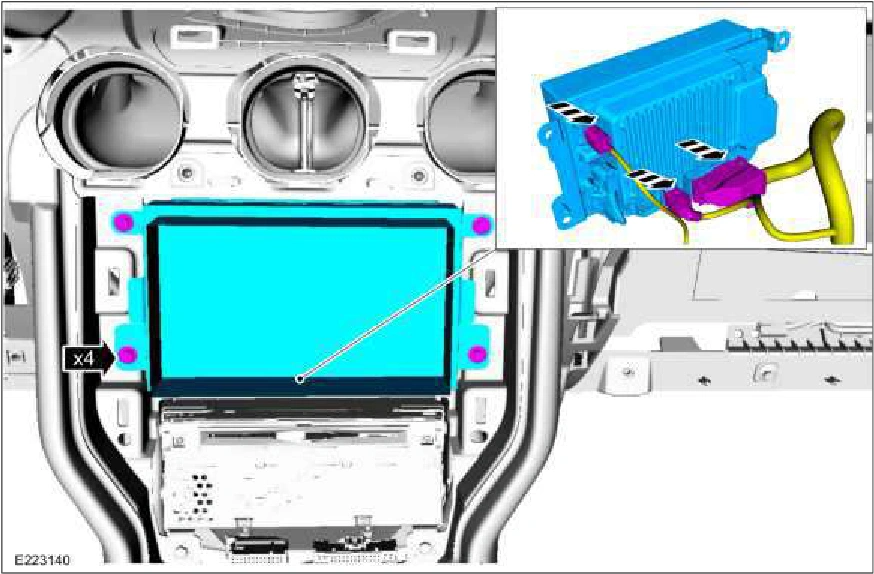

8. Remove the bolts and the FDIM. Disconnect the electrical connectors. Torque : 22 lb.in (2.5 Nm)
Convertibe: Rear Cable
9. Remove the floor console. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
10. Remove the loadspace trim panel. Refer to: Loadspace Trim Panel - Convertible (501-05 Interior Trim and Ornamentation, Removal and Installation).
11. Remove the luggage compartment lid interior trim panel.
1. Remove the latch cover.
2. Remove the push pins.
