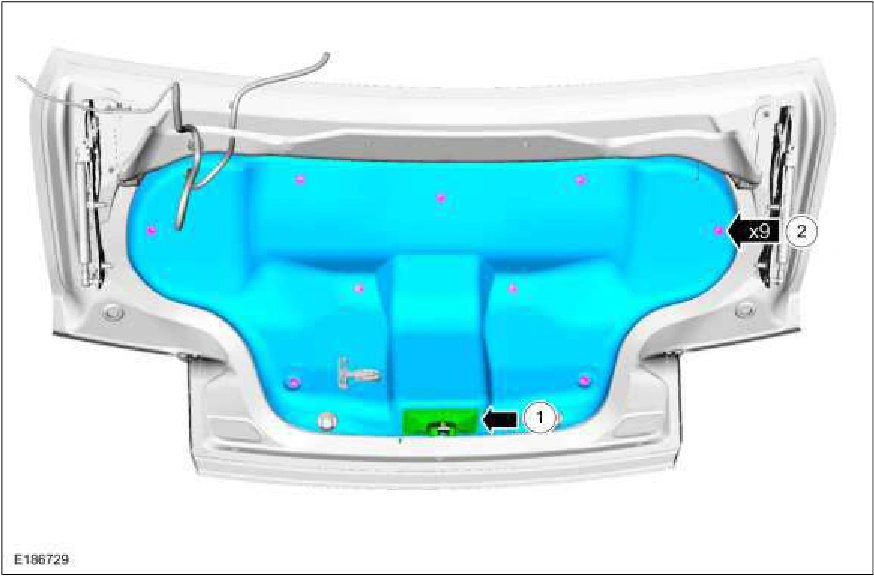

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4592Original colors & callouts · Select to enlarge

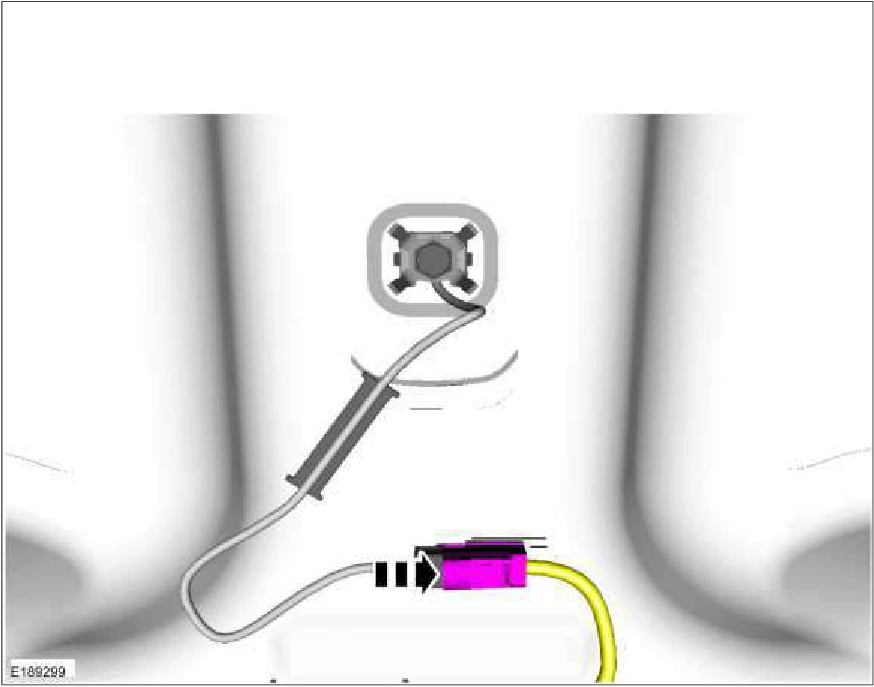

12. Disconnect the electrical connector.

415-00B General Information -Vehicles With Touchscreen Display — original illustration 2, reference 4592Original colors & callouts · Select to enlarge

13. Remove the luggage compartment weatherstrip.
