Installation

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4594Original colors & callouts · Select to enlarge

Coupe

1. Overlay the new Satellite radio antenna cable on the vehicle wiring harness following the routing shown. Secure the new Satellite radio antenna cable to the wiring harness with tape or zip ties as necessary.

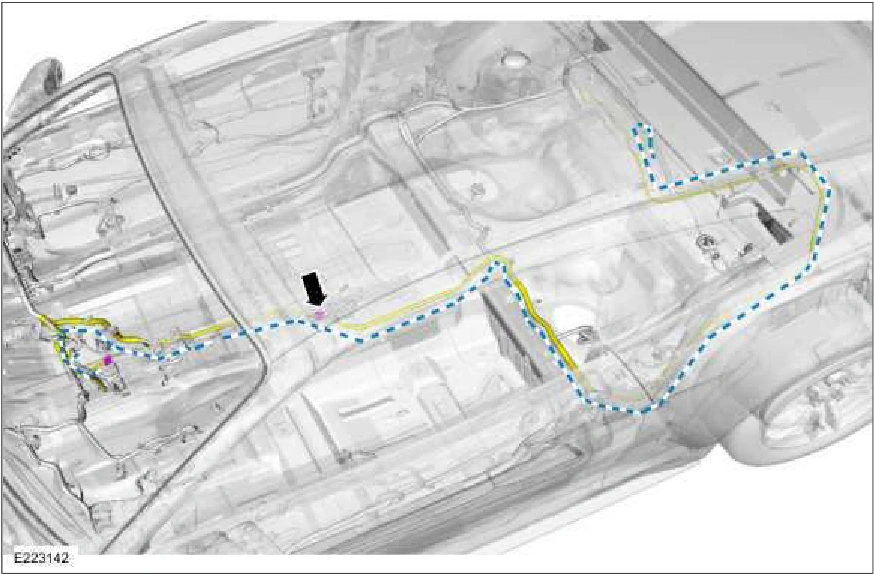

415-00B General Information -Vehicles With Touchscreen Display — original illustration 2, reference 4594Original colors & callouts · Select to enlarge

Convertible

2. Overlay the new Satellite radio antenna cable on the vehicle wiring harness following the routing shown. Secure the new Satellite radio antenna cable to the wiring harness with tape or zip ties as necessary.
