Subwoofer and Amplifier Unit

415-00B Information and Entertainment System - General Information - 2016 Mustang Vehicles With: Touchscreen Display

Procedure revision date:

Removal and Installation

09/3/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the bolts and the subwoofer speaker cover. Torque : 21 lb.in (2.4 Nm)

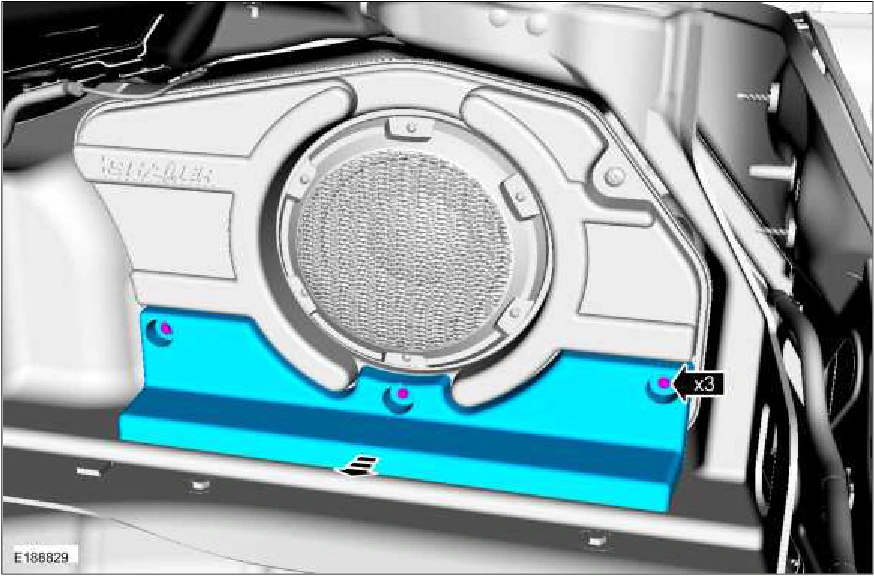

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4596Original colors & callouts · Select to enlarge

2. Remove the bolts, disconnect the electrical connector and remove the subwoofer speaker.

1. Torque : 93 lb.in (10.5 Nm)

2. Torque : 93 lb.in (10.5 Nm)

Source reference 4596
