Vehicles With: Touchscreen Display

2. NOTE: The front USB port and cable is routed directly to the media hub.

NOTE: The rear USB port and cable located at the media hub in the floor console is routed directly to the APIM.

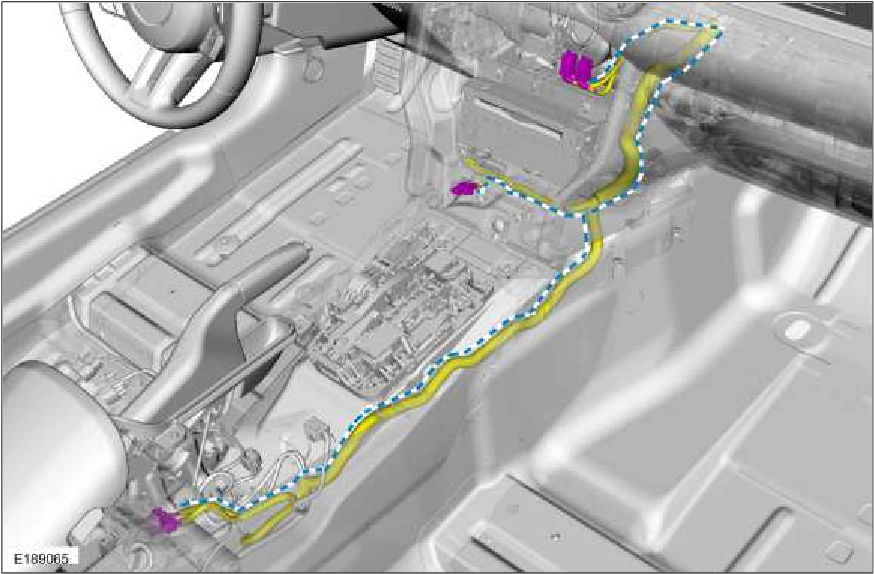

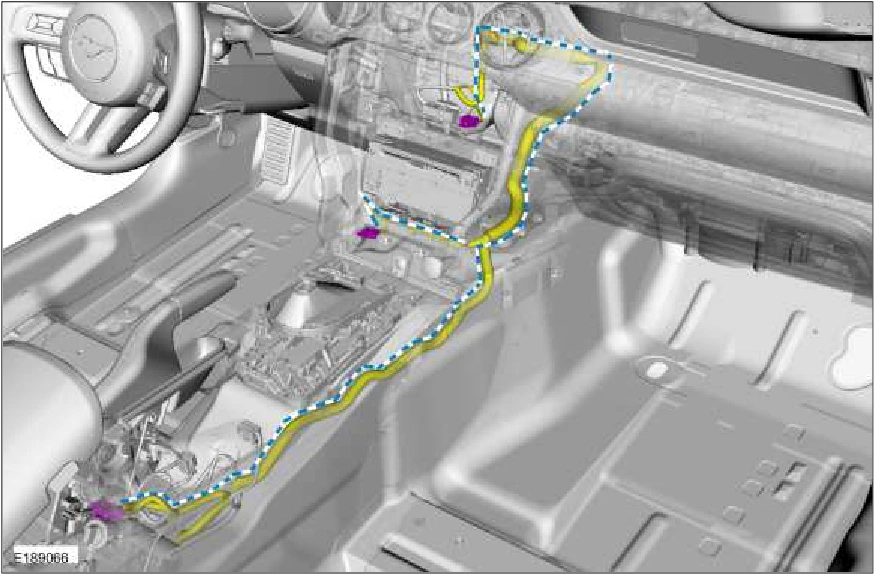

Overlay the new USB cable following the routing shown.

1. Secure the new USB cable to the wiring harness with tape or zip ties as necessary.

2. Cut both ends off the original USB cable.
