SYNC Module [APIM] to Front Display Interface Module (FDIM) Cable

415-00B Information and Entertainment System - General Information - 2016 Mustang Vehicles With: Touchscreen Display

Procedure revision date:

Removal and Installation

08/17/2015

Removal

1. Remove the FDIM. Refer to: Front Display Interface Module (FDIM) (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation).

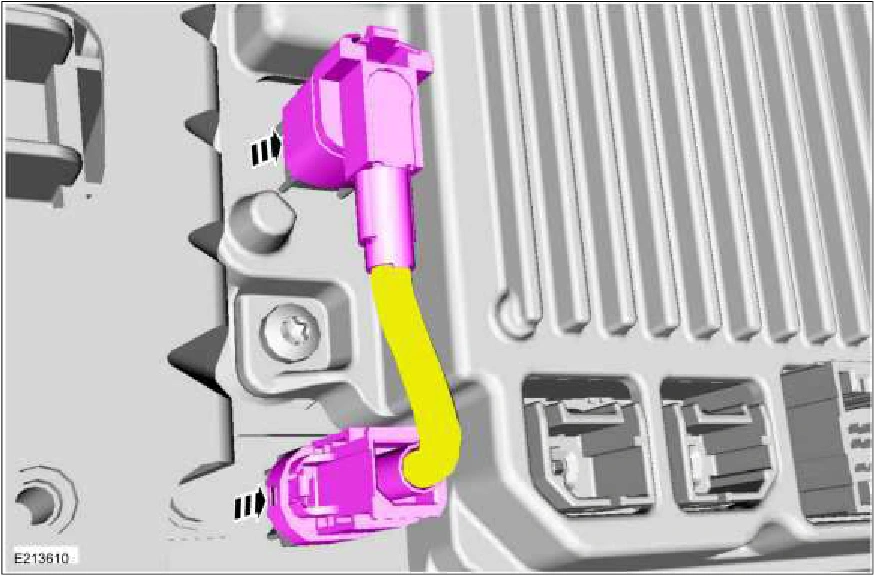

2. Disconnect the electrical connectors and remove the APIM to FDIM cable.

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4601Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 4601
