Universal Serial Bus (USB) Hub

415-00B Information and Entertainment System - General Information - 2016 Mustang Vehicles With: Touchscreen Display

Procedure revision date:

Removal and Installation

08/17/2015

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

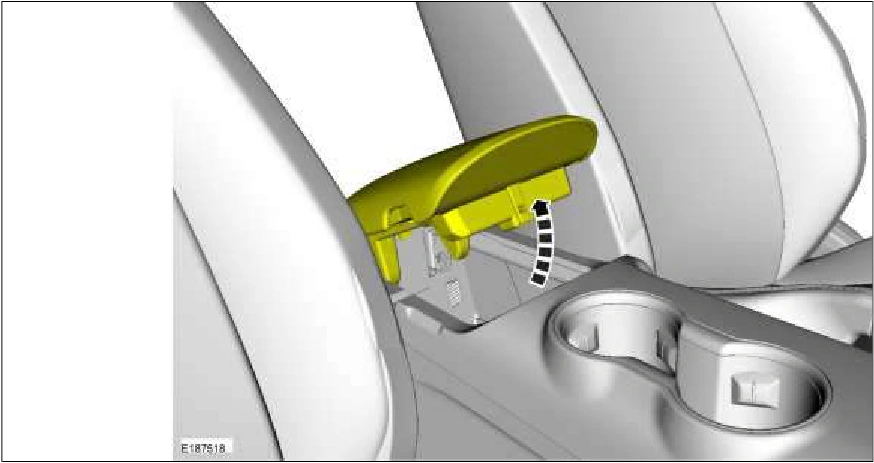

1. Open the floor console lid.

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4602Original colors & callouts · Select to enlarge

2. Remove the media hub. Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover

Source reference 4602
