SYNC Module [APIM]

415-00B Information and Entertainment System - General Information - 2016 Mustang Vehicles With: Touchscreen Display

Procedure revision date:

Removal and Installation

08/17/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the FDIM. Refer to: SYNC Module [APIM] (415-00 Information and Entertainment System - General Information - Vehicles With: Touchscreen Display) .

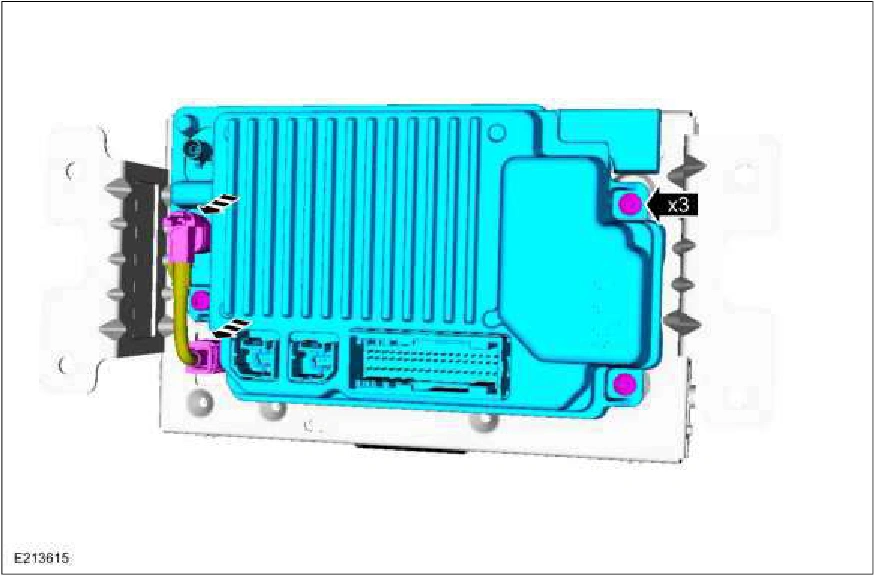

2. Remove the screws, disconnect the electrical connector and separate the APIM from the FDIM. Torque : 9 lb.in (1 Nm)

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4600Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure

2. If a new APIM is being installed, program the APIM to the correct software level Refer to: SYNC Module [APIM] Replacement Programming (415-00 Information and Entertainment System - General Information - Vehicles With: Touchscreen Display) .

Source reference 4600
