1-34 Description and Operation
Engine Control Components
The IMRC shutters are in the closed position below 3,000 RPM to create air flow turbulence for better charge mixing in the cylinder. The IMRC shutters are in the open position above 3,000 RPM to reduce air flow restriction.

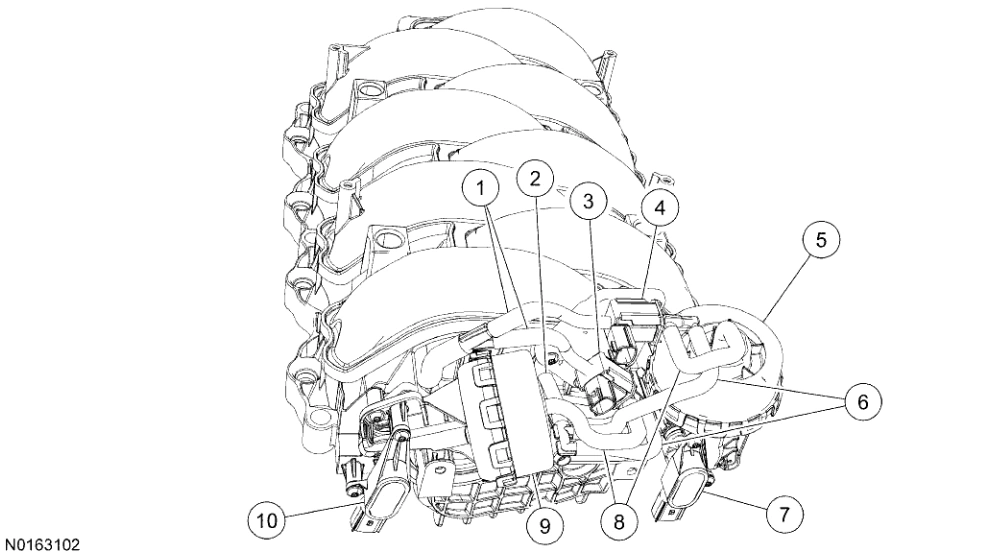

Typical IMRC
Intake Air System | Component |
|---|---|
1 | Vent Lines To The Intake Air Tube |
2 | Manifold Vacuum Supply Port |
3 | Intake Manifold Runner Control Bank 2 (IMRC2) Solenoid |
4 | Intake Manifold Runner Control Bank 1 (IMRC1) Solenoid |
5 | Vacuum Actuator Bank 1 |
6 | Manifold Vacuum Supply Lines |
7 | Intake Manifold Runner Control Bank 1 (IMRC1) Sensor |
8 | Vacuum Lines From IMRC Solenoid To Vacuum Actuator |
9 | Vacuum Actuator Bank 2 |
10 | Intake Manifold Runner Control Bank 2 (IMRC2) Sensor |
Intake Manifold Tuning Valve (IMTV)
WARNING: Substantial opening and closing torque is applied by this system. To prevent injury, be careful to keep fingers away from lever mechanisms when actuated. Failure to follow these instructions may result in personal injury.
The IMTV is a motorized actuated unit mounted directly to the intake manifold. The IMTV actuator controls a shutter device attached to the actuator shaft. There is no monitor input to the PCM with this system to indicate shutter position.
2016 Powertrain Control/Emissions Diagnosis, Gasoline Engines, 3/2015
