Turbocharger And Charge Air Cooler (CAC) Systems

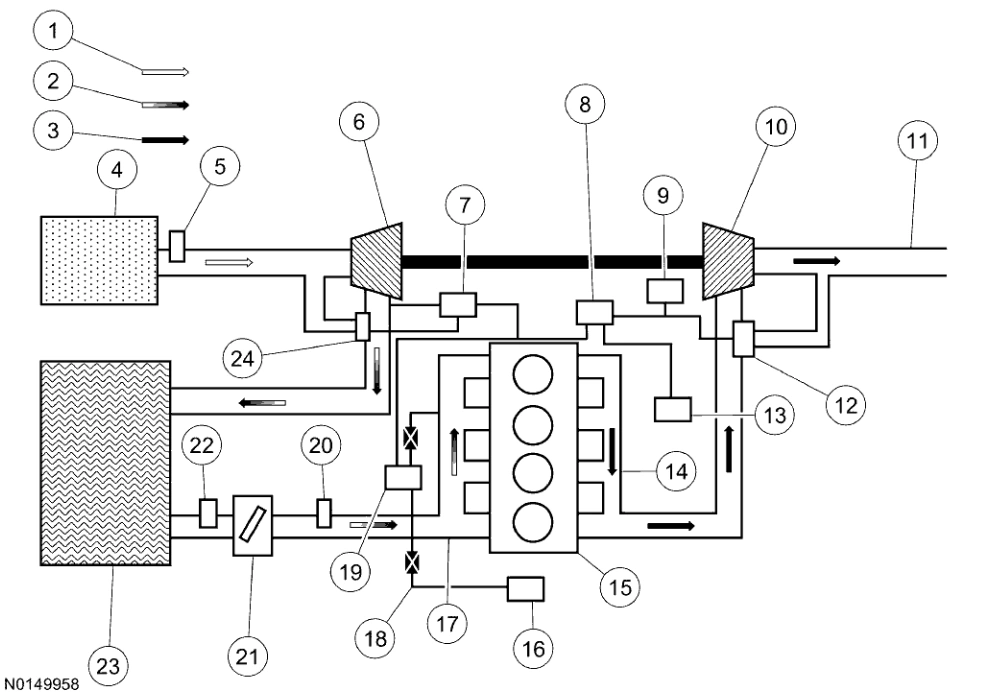

Typical 4 Cylinder Turbocharger Airflow Diagram — Vacuum Actuated Wastegate
Turbocharger System | Component |
|---|---|
1 | Intake Air |
2 | Compressed Air |
3 | Exhaust Air |
4 | Air Filter |
5 | IAT Sensor |
6 | Turbocharger Intake Compressor |
7 | Turbocharger Bypass Valve Solenoid |
8 | Turbocharger Wastegate Regulating Valve Solenoid |
9 | Wastegate Vacuum Sensor |
10 | Turbocharger Exhaust Turbine |
11 | Outlet To Exhaust System |
12 | Turbocharger Wastegate |
13 | Turbocharger Wastegate Regulating Valve Solenoid Vent |
14 | Exhaust Manifold |
