1-100 Description and Operation
Turbocharger And Charge Air Cooler (CAC) Systems

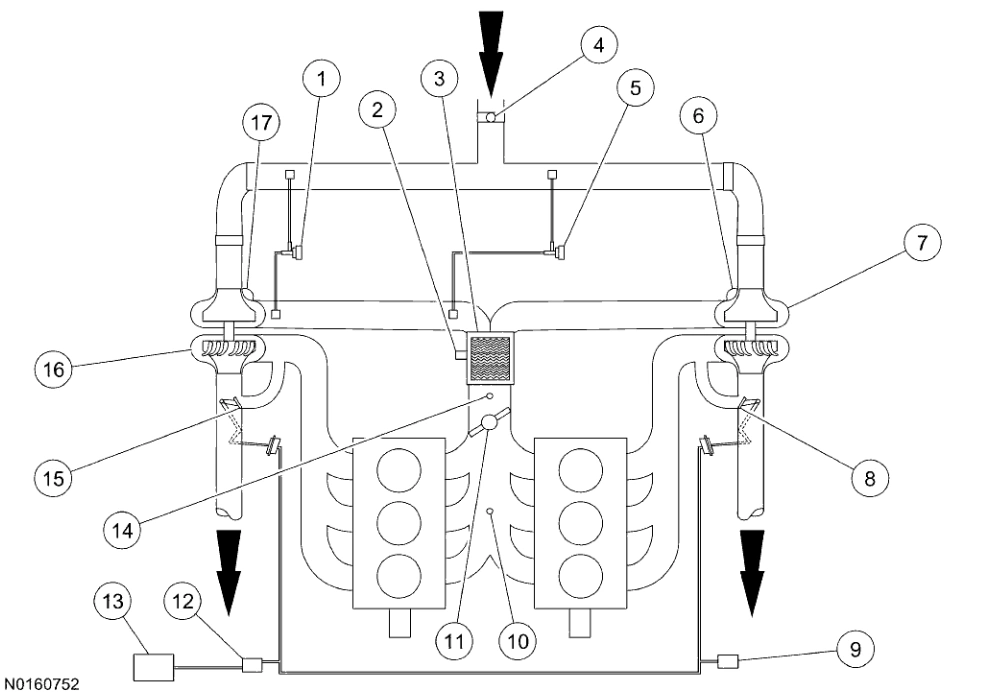

Typical 6 Cylinder Turbocharger Airflow Diagram
Turbocharger System | Component |
|---|---|
1 | Turbocharger Bypass Valve Left Bank (Bank 2) (If Equipped) |
2 | Turbocharger Bypass Valve (Integrated in Charge Air Cooler) (If Equipped) |
3 | Charge Air Cooler (CAC) |
4 | Crankcase Pressure (CKCP) Sensor (If Equipped) |
5 | Turbocharger Bypass Valve Right Bank (Bank 1) (If Equipped) |
6 | Turbocharger Bypass Valve Right Bank (Bank 1) (Integrated In Turbocharger) (If Equipped) |
7 | Turbocharger Right Bank (Bank 1) |
8 | Wastegate Right Bank (Bank 1) |
9 | Wastegate Vacuum Sensor (WVS) |
10 | Manifold Absolute Pressure/Intake Air Temperature 2 (MAP/IAT2) Sensor |
11 | Throttle Body |
12 | Turbocharger Wastegate Regulating Valve Solenoid (TCWRVS) |
