1-98 Description and Operation
Turbocharger And Charge Air Cooler (CAC) Systems
(Continued)
Turbocharger System | Component |
|---|---|
15 | Cylinder Head |
16 | Vacuum Pump |
17 | Intake Manifold |
18 | Vacuum Supply |
19 | Vacuum Reservoir |
20 | MAP Sensor |
21 | Intake Throttle Assembly |
22 | Turbocharger Boost Pressure/Charger Air Cooler Temperature (TCBP/CACT) Sensor |
23 | CAC |
24 | Turbocharger Bypass Valve |

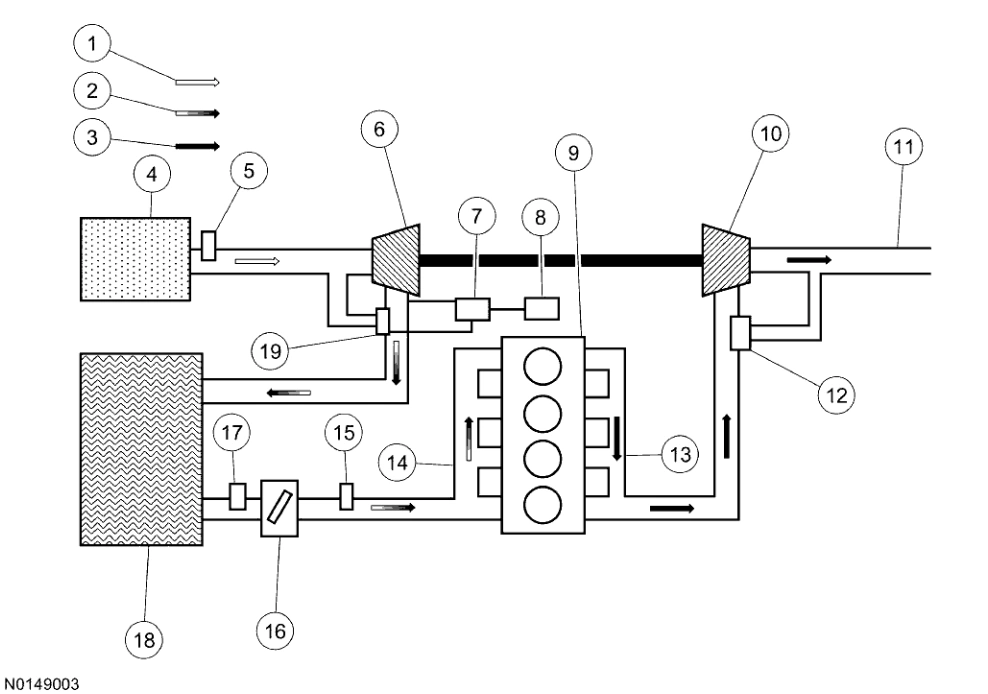

Typical 4 Cylinder Turbocharger Airflow Diagram — Pressure Actuated Wastegate
Turbocharger System | Component |
|---|---|
1 | Intake Air |
2016 Powertrain Control/Emissions Diagnosis, Gasoline Engines, 3/2015
