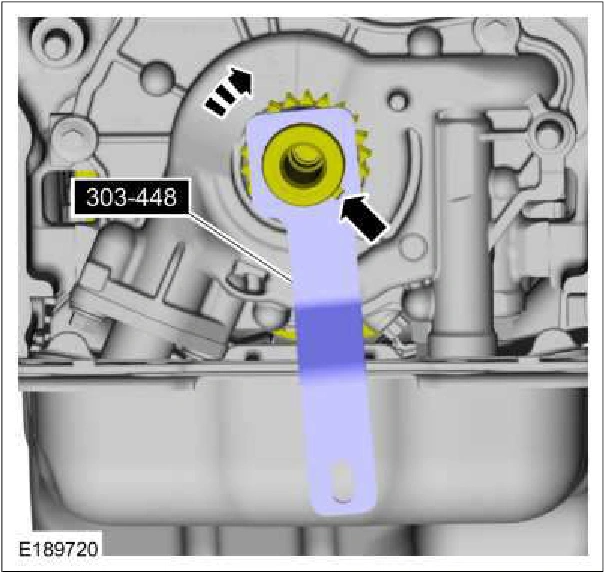

38. Using the special tool, rotate the crankshaft clockwise until the keyway is at the 5 o'clock position. Use Special Service Tool: 303-448 (T93P-6303-A) Holding Tool, Crankshaft.
NOTICE: The LH camshafts, VCT units and timing chains must be installed first. Only turn the crankshaft as instructed. Failure to do so may result in the camshafts installed out of phase and serious damage to the engine will result.
39. NOTE: If the components are to be reinstalled, they must be installed in their original locations.

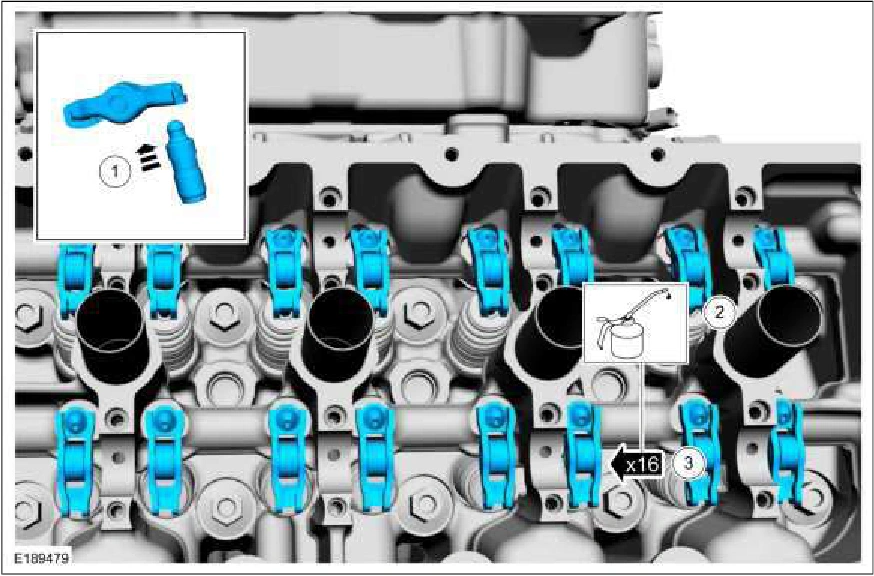

1. Assemble the hydraulic lash adjusters onto the spring clips on the camshaft roller followers.
2. Lubricate the camshaft roller follower and hydraulic lash adjuster assemblies with clean engine oil. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)
3. Install the camshaft roller follower and hydraulic lash adjuster assemblies.
