36. NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

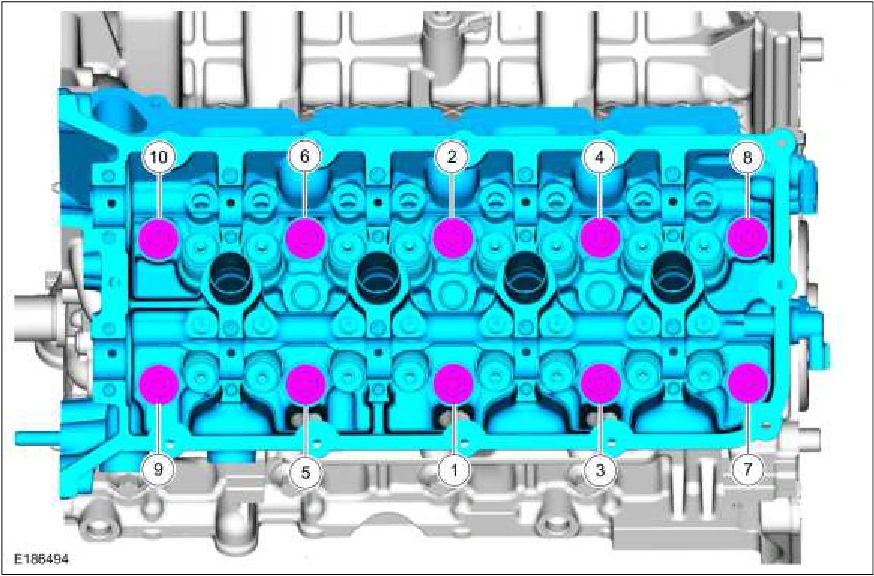

Install the LH cylinder head and the new bolts. Torque : Stage 1: 18 lb.ft (25 Nm) Stage 2: 55 lb.ft (75 Nm) Stage 3: Loosen: 180° Stage 4: 18 lb.ft (25 Nm) Stage 5: 26 lb.ft (35 Nm) Stage 6: 90° Stage 7: 90°

Engine — original illustration 1, reference 501Original colors & callouts · Select to enlarge

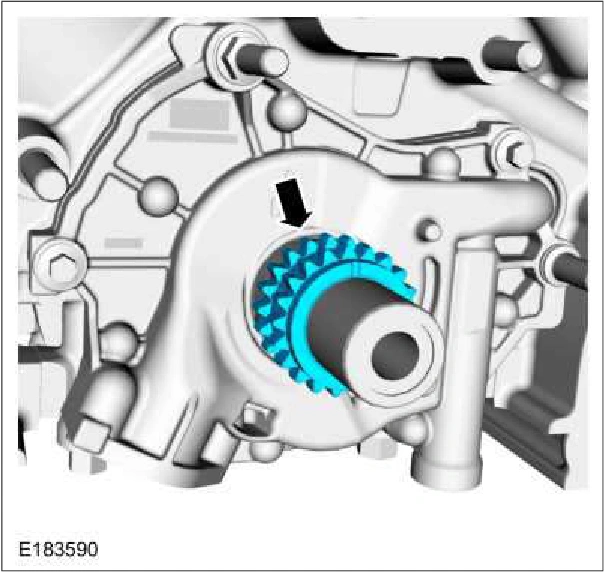

37. Install the crankshaft sprocket.

Engine — original illustration 2, reference 501Original colors & callouts · Select to enlarge
