40. NOTE: Lubricate the camshafts with clean engine oil prior to installation.

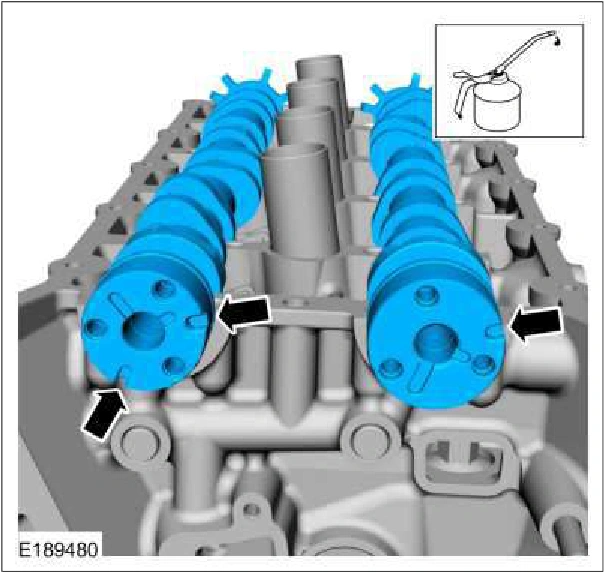

Install theLH intake and exhaust camshafts in the neutral position. Align the D-slots as shown in the illustration. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Engine — original illustration 1, reference 503Original colors & callouts · Select to enlarge

41. NOTE: Do not tighten at this time.

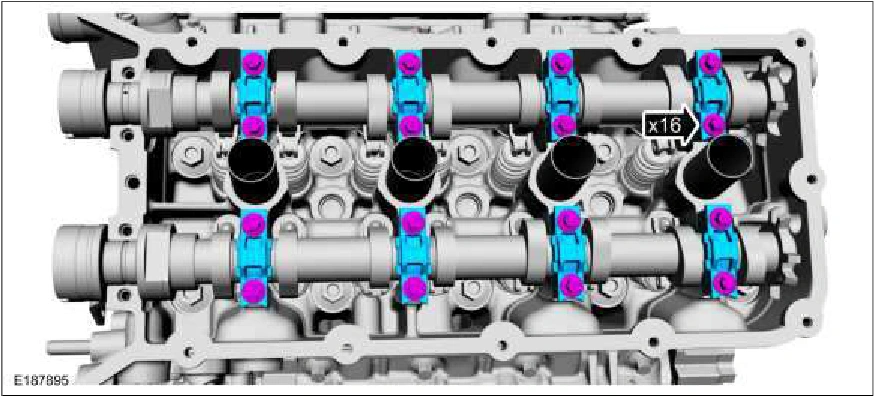

Install the camshaft bearing caps and the bolts.

Engine — original illustration 2, reference 503Original colors & callouts · Select to enlarge

42. NOTE: Do not tighten at this time.

Install the front camshaft bearing mega cap and the bolts.
