Engine — 2016 workshop reference 498

Engine — original illustration 1, reference 498Original colors & callouts · Select to enlarge

30. Install the KSs and the bolts. Torque : 177 lb.in (20 Nm)

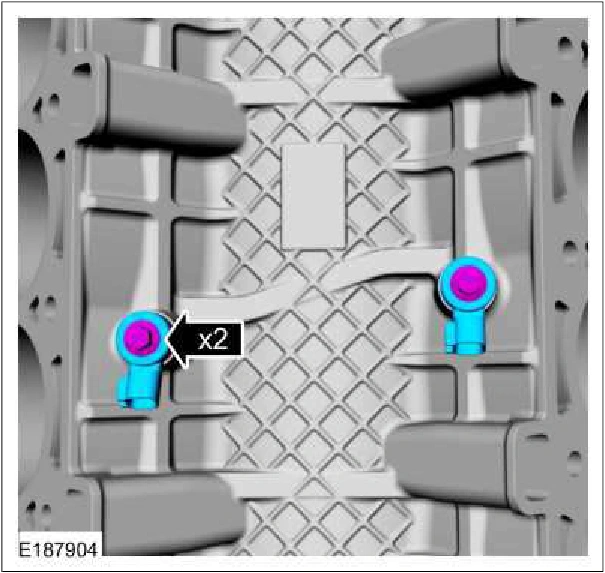

Engine — original illustration 2, reference 498Original colors & callouts · Select to enlarge

31. Install the dowels on theRH bank of the cylinder block.
