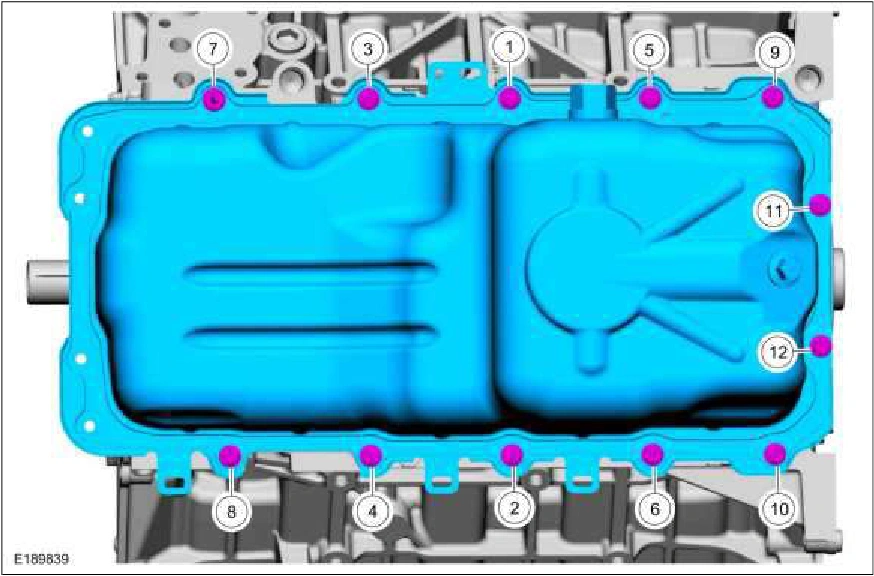

26. Install the oil pan and the fasteners. Torque : Stage 1: 18 lb.in (2 Nm) Stage 2: 89 lb.in (10 Nm) Stage 3: 45°

Engine — original illustration 2, reference 496Original colors & callouts · Select to enlarge

27. Using a new gasket, install the oil filter adapter and the bolts. Torque : Stage 1: 177 lb.in (20 Nm) Stage 2: 60°
