Engine — 2016 workshop reference 495

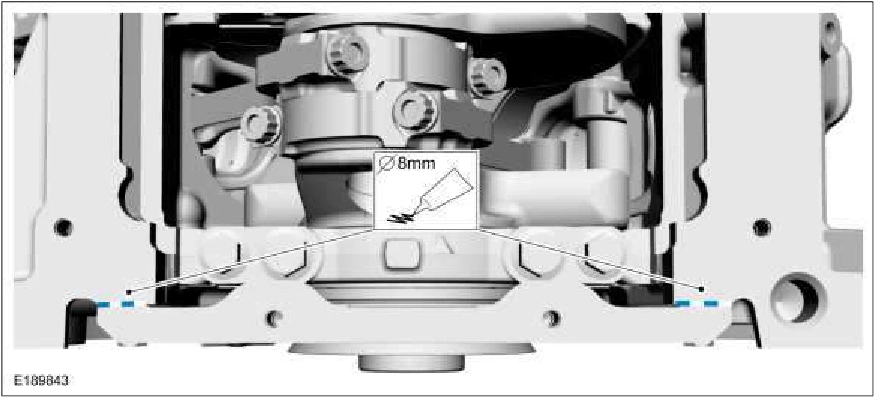

Engine — original illustration 1, reference 495Original colors & callouts · Select to enlarge

24. Install the oil pan baffle and gasket.

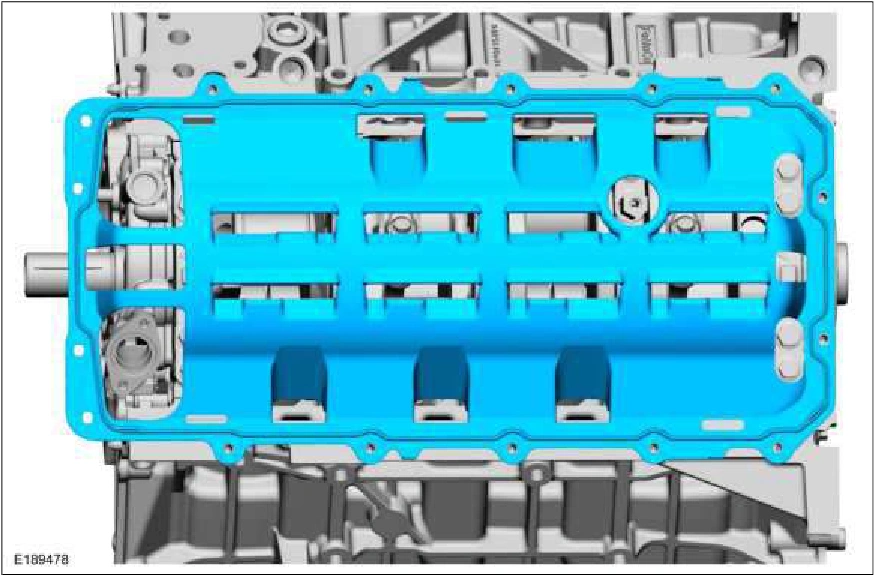

Engine — original illustration 2, reference 495Original colors & callouts · Select to enlarge

25. Using a new O-ring seal, install the oil pump screen and pickup tube and the bolts. Torque : Oil pump screen and pickup tube-to-oil pump bolts : Stage 1: 89 lb.in (10 Nm) Stage 2: 45° Oil pump screen and pickup tube-to-spacer bolt : 18 lb.ft (25 Nm)
