Engine — 2016 workshop reference 497

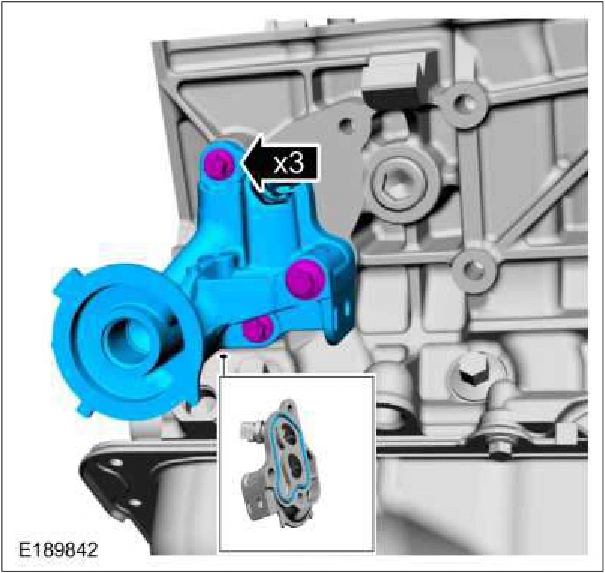

Engine — original illustration 1, reference 497Original colors & callouts · Select to enlarge

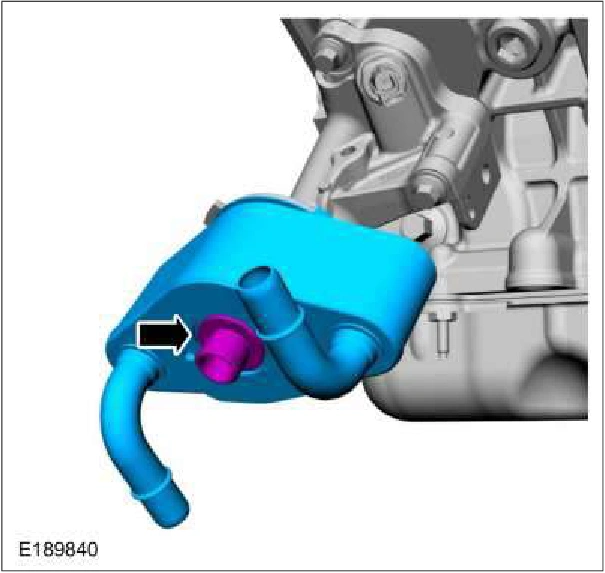

28. NOTICE: A new oil cooler must be installed or severe damage to the engine can occur.

Install a new oil cooler and the threaded fitting. Torque : 43 lb.ft (58 Nm)

Engine — original illustration 2, reference 497Original colors & callouts · Select to enlarge

29. NOTICE: The CKP sensor must be positioned into the fitting on the crankshaft rear seal retainer

plate and be flush against the boss on the engine block before the bolt is installed. If the CKP sensor is installed incorrectly, the CKP sensor can be damaged.

Install the CKP sensor must be positioned into the fitting on the crankshaft rear seal retainer plate. Make sure the CKP sensor is flush with the engine block boss. Install the bolt. Torque : 89 lb.in (10 Nm)

Source reference 497

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
