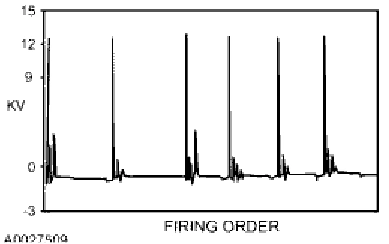

Is the spark pattern inconsistent?
Yes | No |
|---|---|
INSPECT the spark plug wires for missing cylinders. MEASURE the resistance of the spark plug wires. INSTALL a new spark plug wire if the resistance is greater than 7,000 ohms per 30.5 cm (1 foot). REFER to the Workshop Manual Section 303-07, Engine Ignition. Clear the PCM DTCs. REPEAT the self-test. GO to JE2 . | GO to JC7 . |
JC7 CHECK FOR A HIGH SPARK PLUG FIRING VOLTAGE
• Observe for a high spark plug firing voltage.

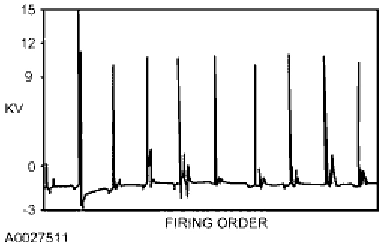

Is the average value of the spark plug firing voltage greater than 15 kV?
Yes | No |
|---|---|
INSPECT the spark plug wires for missing cylinders. MEASURE the resistance of the spark plug wires. INSTALL a new spark plug wire if the resistance is greater than 7,000 ohms per 30.5 cm (1 foot). REFER to the Workshop Manual Section 303-07, Engine Ignition. Clear the PCM DTCs. REPEAT the self-test. | GO to JC8 . |
