JC4 CHECK FOR THE IGNITION PATTERN
• Connect an engine analyzer to diagnose concerns in the secondary side of the ignition system.

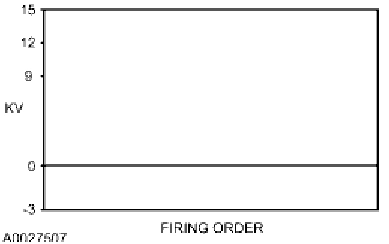

• Observe the pattern on a scope while cranking the engine.
Is the pattern flat, which indicates no ignition spark on all cylinders?
Yes | No |
|---|---|
GO to Pinpoint Test JE . | GO to JC5 . |

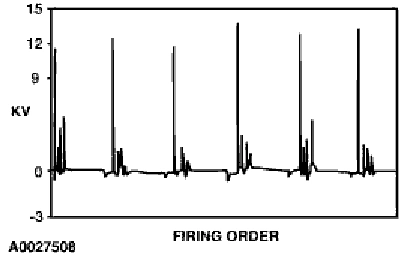

JC5 CHECK FOR A NORMAL IGNITION PATTERN
Note: Spark plugs may be fired more than once per combustion event. Multi-strike operating mode is RPM dependent.
• Ignition ON, engine running. If no start, crank the engine.
Are the patterns even and is the average value of spark plug firing voltage between 9 kV and 15 kV (higher during engine crank/no start)?
Yes | No |
|---|---|
GO to Pinpoint Test Z . | GO to JC6 . |
JC6 CHECK FOR MISSING SPARK PATTERNS
• Observe for missing spark pattern.
