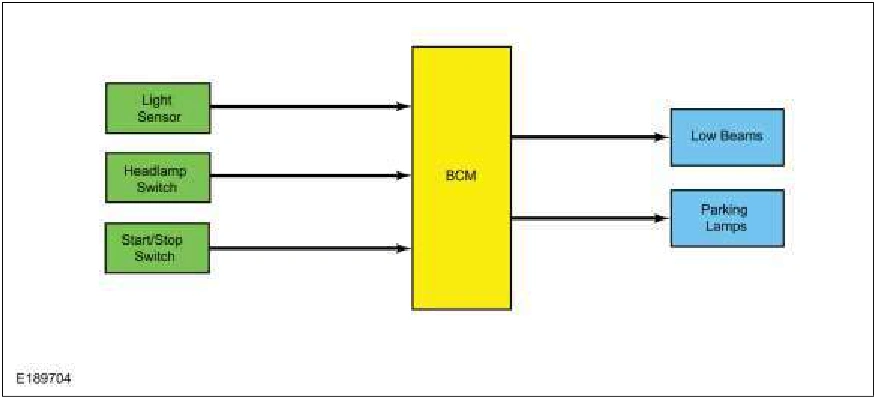

Autolamps
The BCM monitors the light sensor with a voltage signal. The light sensor input to the BCM varies with the ambient light conditions.
The BCM monitors the headlamp switch circuits to indicate the headlamp switch position.
When the BCM receives a headlamp switch status indicating a request for the autolamps, the BCM monitors the light sensor for the ambient light condition. If the BCM determines the ambient light level is dark, the BCM supplies voltage to the exterior lamps.
Headlamps On With Wipers On Function
If the headlamp switch is in the AUTOLAMPS ON position and the front wipers are on for more than 10 seconds (except during a mist wipe or while the wipers are on to clear washer fluid during a wash condition), the exterior lamps are turned on. The exterior lamps are turned off when the ignition switch is changed to OFF, the headlamp switch is placed in the OFF position, or the front wipers are off for more than 30 seconds. The exception to this is when the exterior lights are on because of darkness determined by the light sensor.
Stoplamps - Except China

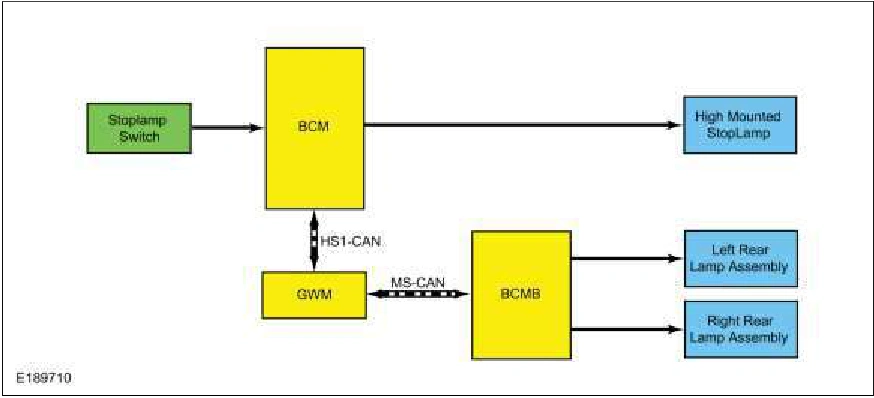

System Diagram
Network Message Chart
GWM Network Input Messages
