The BCM does not activate the stoplamps when the ignition is OFF.

The BCM also provides an Field Effect Transistor (FET) protection of the stoplamp output circuits. When an excessive current draw is detected, the BCM disables the affected stoplamp circuit driver.

Refer to: Module Controlled Functions - System Operation and Component Description (419-10 Multifunction Electronic Modules, Description and Operation).

Turn Signal and Hazard Lamps - Except China

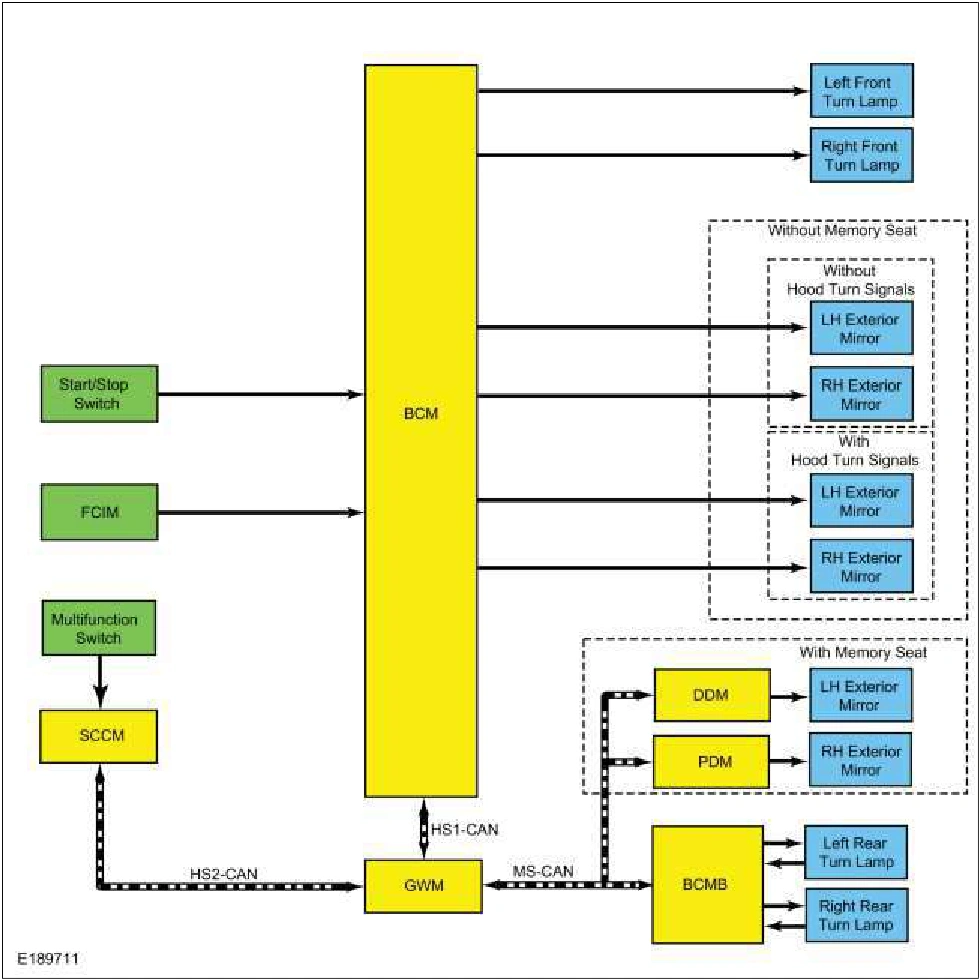

System Diagram

Exterior Lighting - System Operation and Component Description — original illustration 1, reference 5586Original colors & callouts · Select to enlarge

Network Message Chart

BCM Network Input Messages

Broadcast Message	Originating Module	Message Purpose
Turn signal switch status	GWM	Indicates the turn signal stalk position on the LH steering column multifunction switch (left/right lane change or turn signal on or off). The BCM activates the left/right turn signals based on this input.
