2016 workshop · Engine

Engine

303-01C Engine - 5.0L

2016 Mustang5.0LReference 571 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine — original illustration 1, reference 571Original colors & callouts · Select to enlarge

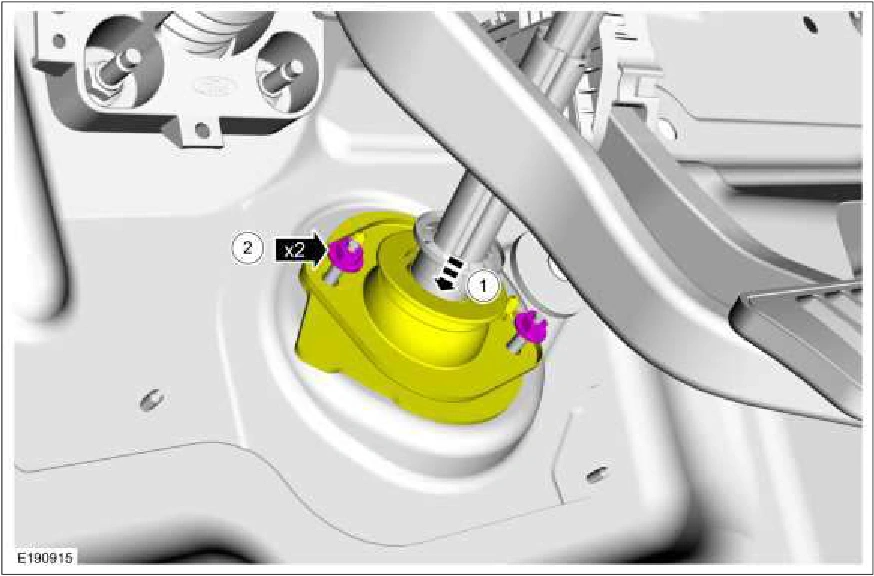

Step 57

1. Position the steering column dash seal.

2. Tighten the steering column dash seal nuts. Torque : 80 lb.in (9 Nm)

Engine — original illustration 2, reference 571Original colors & callouts · Select to enlarge

58. Fill the engine with clean engine oil. Refer to: Specifications (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Specifications). Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Source reference 571
