Engine — 2016 workshop reference 569

Engine — original illustration 1, reference 569Original colors & callouts · Select to enlarge

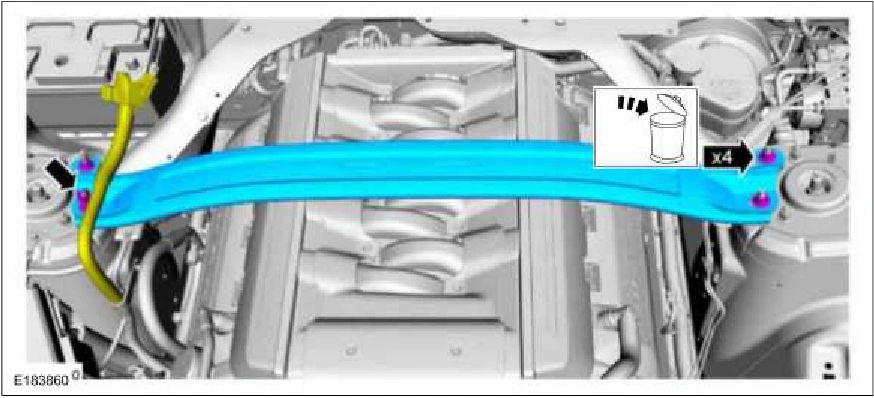

53. If equipped, install the strut tower cross brace and nuts.

Torque : 41 lb.ft (55 Nm) Attach the wiring harness retainer.

Engine — original illustration 2, reference 569Original colors & callouts · Select to enlarge

54. NOTE: Use the index-mark for location to aid in hood installation.

Install the hood and the nuts. Torque : 62 lb.in (7 Nm)
