Engine — 2016 workshop reference 566

Engine — original illustration 1, reference 566Original colors & callouts · Select to enlarge

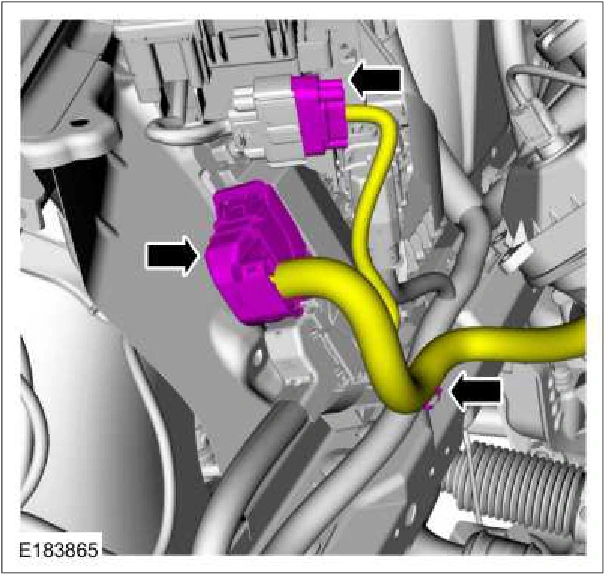

45. Connect the top PCM electrical connector, the 16 pin electrical connector and attach the wiring harness retainers to the PCM bracket.

Engine — original illustration 2, reference 566Original colors & callouts · Select to enlarge

Source reference 566
