Engine — 2016 workshop reference 565

Engine — original illustration 1, reference 565Original colors & callouts · Select to enlarge

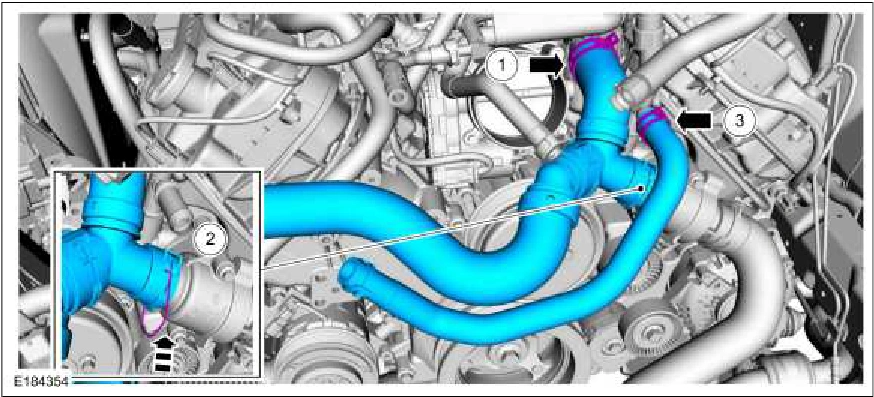

Step 43

1. Install the coolant bypass T assembly and clamp onto the engine.

2. Slide the spring clip until it hits the stop on the hose fitting.

3. Install the degas bottle hose and clamp.

Engine — original illustration 2, reference 565Original colors & callouts · Select to enlarge

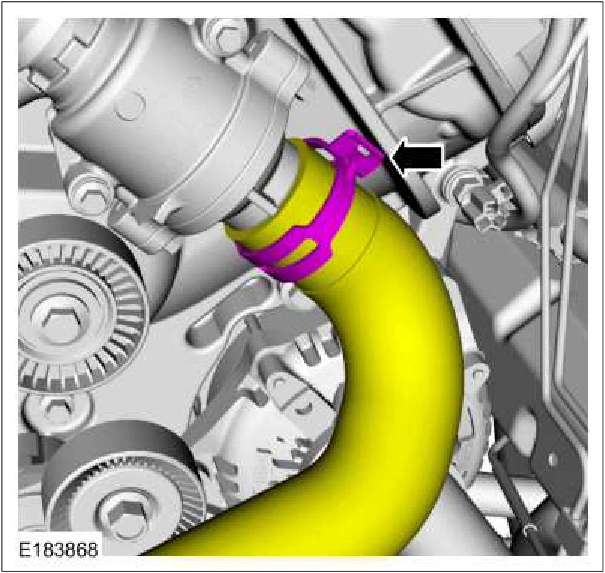

Step 44

1. Position the sound enhancement pipe onto the retainer.

2. Install the pin-type retainer.
