Connect the LH catalyst monitor sensor electrical connector and attach the wiring harness retainers.

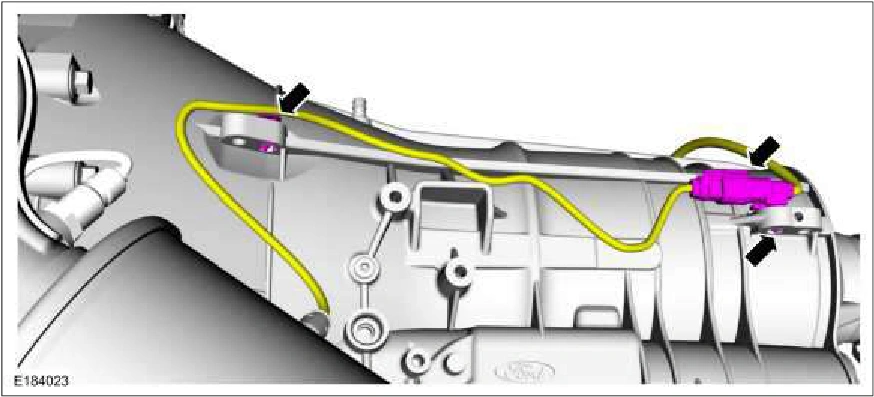

Engine — original illustration 1, reference 563Original colors & callouts · Select to enlarge

37. Install the following items:

1. Refer to: Starter Motor (303-06C Starting System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

2. Refer to: Catalytic Converter RH (309-00C Exhaust System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

38. Attach the wiring harness retainer.

Connect the wiring harness electrical connector. Connect the B+ cable and install the nut. Torque : 159 lb.in (18 Nm) Position the cover.

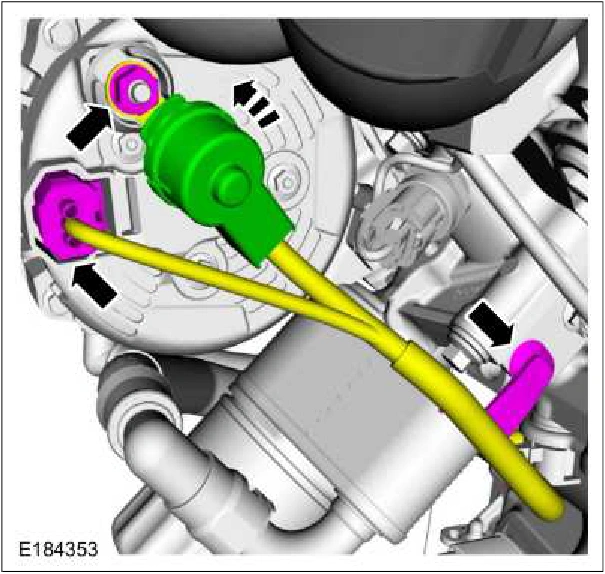

Engine — original illustration 2, reference 563Original colors & callouts · Select to enlarge

39. Attach the EVAP tube to the LH valve cover and the LH inner fender.
