Engine — 2016 workshop reference 561

Engine — original illustration 1, reference 561Original colors & callouts · Select to enlarge

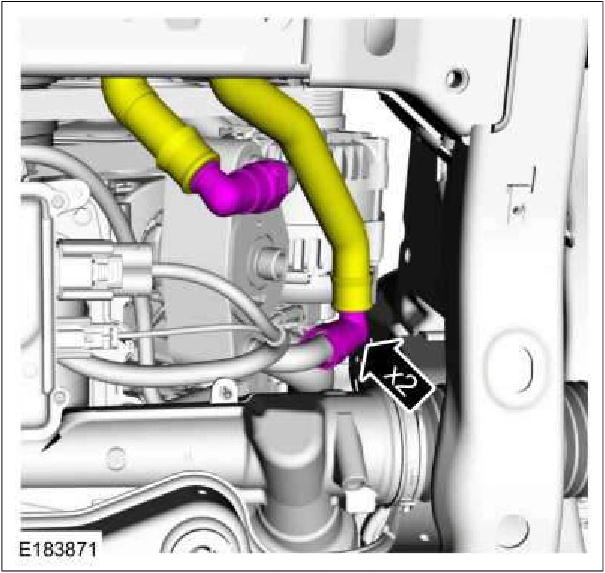

33. Connect the oil cooler hoses.

Engine — original illustration 2, reference 561Original colors & callouts · Select to enlarge

34. NOTE: Do not lubricate the O-ring seal.

Install a new oil filter. Torque : Stage 1: 44 lb.in (5 Nm) Stage 2: 180°

Source reference 561
