Engine — 2016 workshop reference 558

Engine — original illustration 1, reference 558Original colors & callouts · Select to enlarge

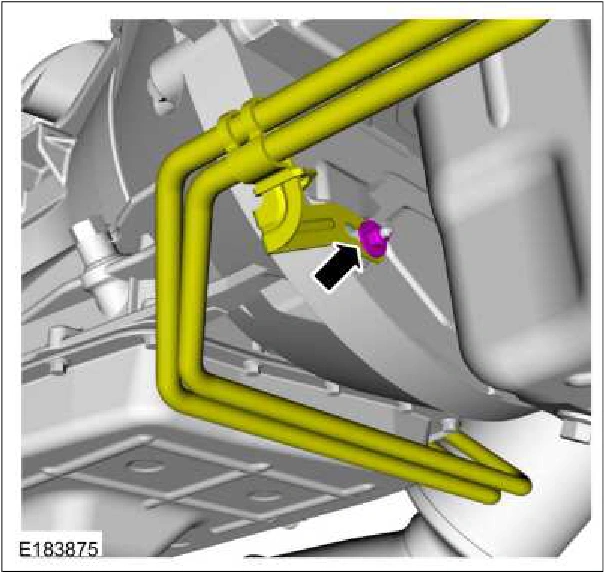

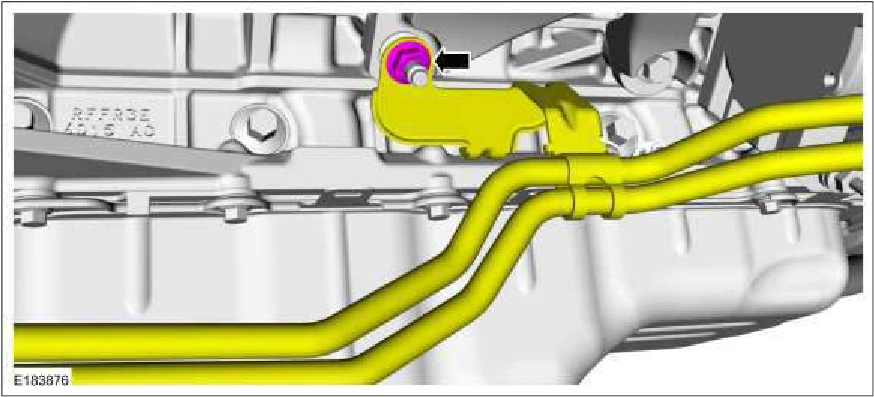

26. Install the transmission cooling tube bracket and nut. Torque : 124 lb.in (14 Nm)

Engine — original illustration 2, reference 558Original colors & callouts · Select to enlarge

27. Push the transmission electrical connector in to connect.

Rotate the transmission electrical connector. Position the wiring harness and attach the retainers.
